| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Dimming | |
| Dimming Range | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Range | |
| Length | |
| Lifetime | |
| Max Case Temperature | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| Package / Case | |
| Power (Watts) | |
| Power Factor | |
| Ratings | |
| Startup Time | |
| Termination Style | |
| Topology | |
| Total Harmonic Distortion (THD) | |
| Type | |
| Voltage | |
| Width |

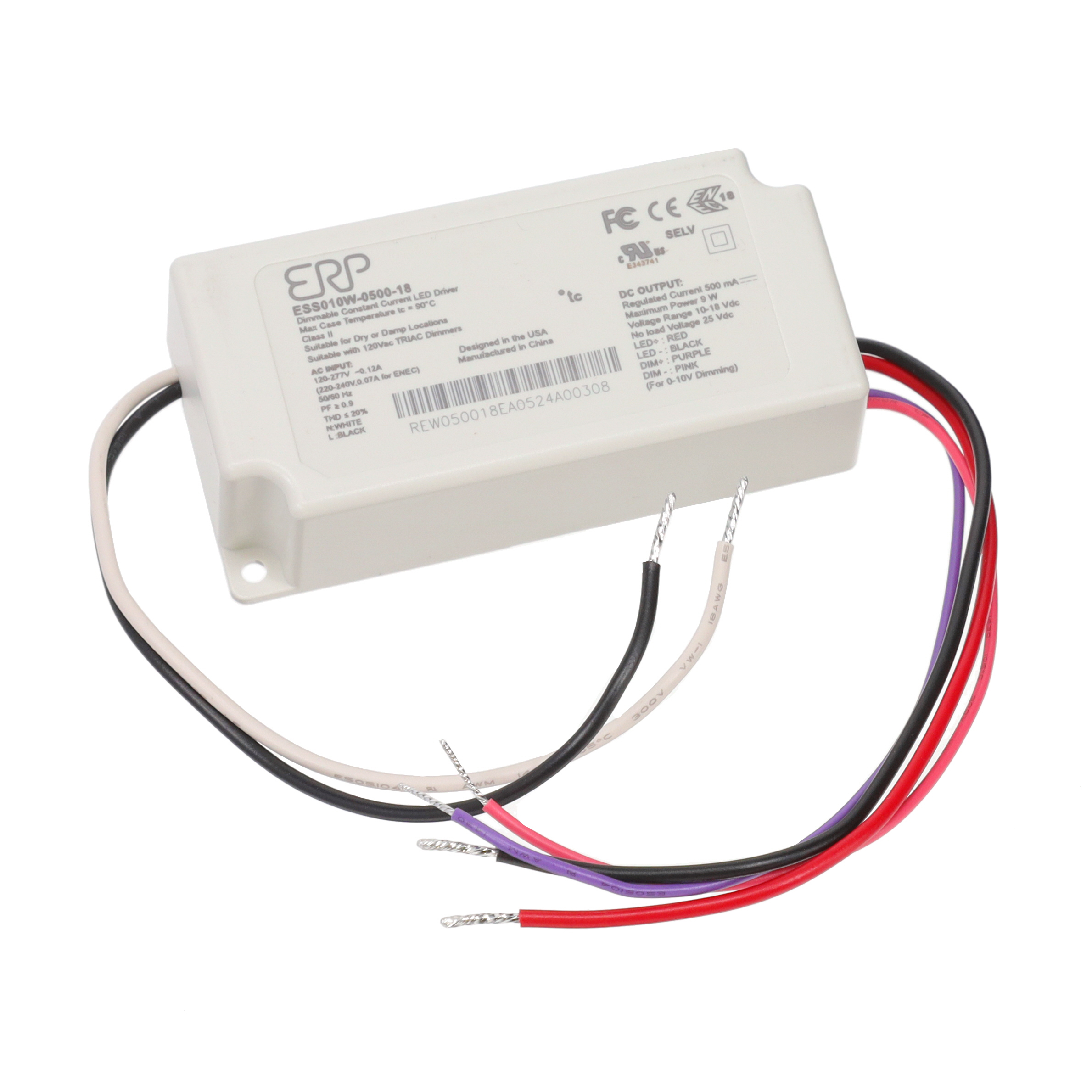

The ESS010W-0500-18 from ERP Power, LLC is a 9W constant current LED driver designed for commercial and residential lighting applications. It operates from a universal input of 120 to 277 VAC and delivers a constant current of 500mA with an output voltage range of 6 to 18 Vdc. The driver achieves up to 87% typical efficiency and features Tri-Mode Dimming, supporting TRIAC (forward-phase), ELV (reverse-phase), and 0-10V analog dimming methods with a dimming range of 1 to 100%.
This LED driver is housed in an IP64-rated ESS plastic case (83.8mm x 39.9mm x 25.1mm) with wire leads for termination, suitable for chassis mounting. It includes built-in protections: over-current (OCP), over-temperature (OTP), and short-circuit (SCP) with auto recovery. The driver complies with FCC Part 15 Class B (120 Vac) and Class A (277 Vac), EN55015, and meets ENERGY STAR, DLC, and CA Title 24 requirements. Rated for 50,000 hours lifetime at 70°C case temperature, with a maximum case hot spot of 90°C.
The input voltage range is 120 to 277 VAC.
The operating temperature range is -30°C to 70°C.
It comes in an ESS Plastic Case (L 84 x W 40 x H 25 mm / 3.30 x 1.57 x 0.99 inches).
Yes, it is RoHS3 compliant and REACH unaffected, with MSL 1 Unlimited.
The output current is 500mA.
It supports analog (0-10V), ELV, and TRIAC dimming with a range of 1 to 100%.
The lifetime is rated at 50,000 hours at 70°C case hot spot temperature.
