| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,100 pcs
|
3100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Case | |
| Current | |
| Dimming | |
| Dimming Method | |
| Dimming Range | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection | |
| Input Voltage | |
| Length | |
| Lifetime | |
| Max Case Temperature | |
| NEMA Rating | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage Range | |
| Power (Watts) | |
| Power Factor | |
| Protection Features | |
| Ratings | |
| Startup Time | |
| THD | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

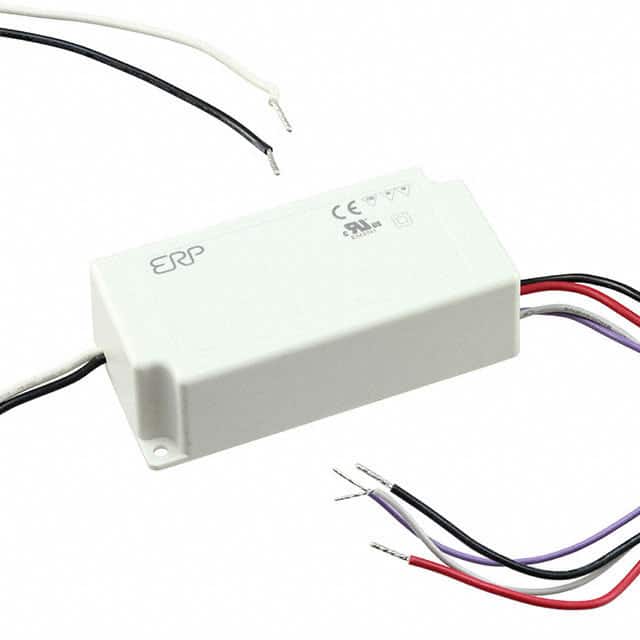

The ERP Power ESS010W-0200-42 is a constant current LED driver in the ESS series, delivering 8W output power with an output voltage range of 28-42V and 200mA current. It operates from a 120VAC input (rated for 120-277 Vac) with a typical efficiency of 87%. This driver features Tri-Mode dimming, supporting analog, ELV (reverse-phase), and TRIAC (forward-phase) dimming methods, with a dimming range of 1-100%. It includes protection features such as over-current, over-temperature, and short-circuit protection with auto recovery. The case is IP64 rated with silicone-based potting, measures 83.8mm x 39.9mm x 25.1mm, and uses wire lead terminations. It has a maximum case temperature of 90°C and a typical lifetime of 50,000 hours at 70°C case hot spot. Approval agencies include cUL, UL, cRUcs, FC, CE, and CB.
The output voltage range is 28-42V and the output current is 200mA constant current.
It supports analog (0-10V), ELV (reverse-phase), and TRIAC (forward-phase) dimming methods.
The operating temperature range is -30°C to 90°C.
The ingress protection rating is IP64.
The typical lifetime is 50,000 hours at 70°C case hot spot temperature.
RoHS3 compliant per available data.
