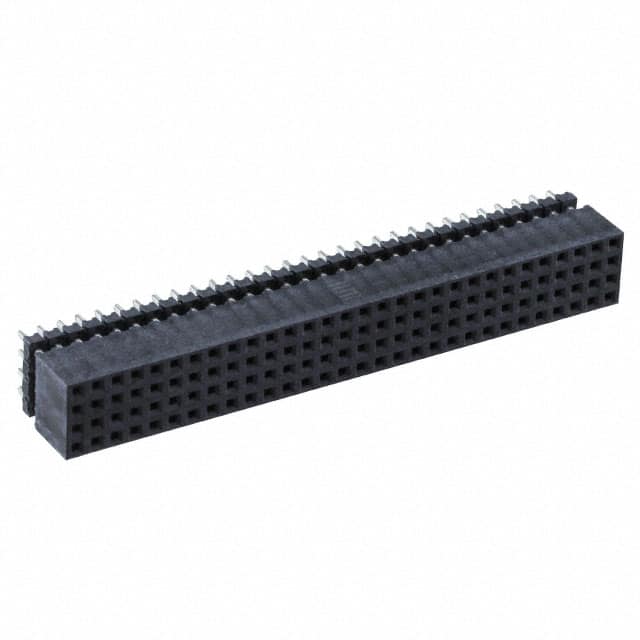

The Samtec ESQT-130-03-M-Q-368 is a 120-position elevated socket connector designed for board-to-board or cable applications. It features 4 rows of forked contacts with a 2.00mm pitch and 2.00mm row spacing, offering a compact solution for high-density interconnections.
Electrical specifications include a current rating of 4.5A per contact when two pins are powered, with phosphor bronze contacts and gold plating on the mating surfaces (20 µ" / 0.51 µm) and matte tin on the tails. The connector is rated for 100 mating cycles at 10 µ" gold thickness and operates over a temperature range of -55°C to +125°C.
The through-hole termination with solder tails (2.29mm length) ensures reliable assembly. The insulator is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating, and the connector is lead-free solderable. The push-pull fastening type and elevated design accommodate board stacking requirements.
The connector has 120 positions, all loaded, arranged in 4 rows of 30.
The pitch is 2.00mm (0.079").
The current rating is 4.5A per contact when 2 pins are powered.
The connector is through hole mounting with solder termination.
The operating temperature range is -55°C to +125°C.
The mating contacts have 20 µ" (0.51 µm) gold plating.
Yes, it is RoHS3 compliant (verified by manufacturer).
