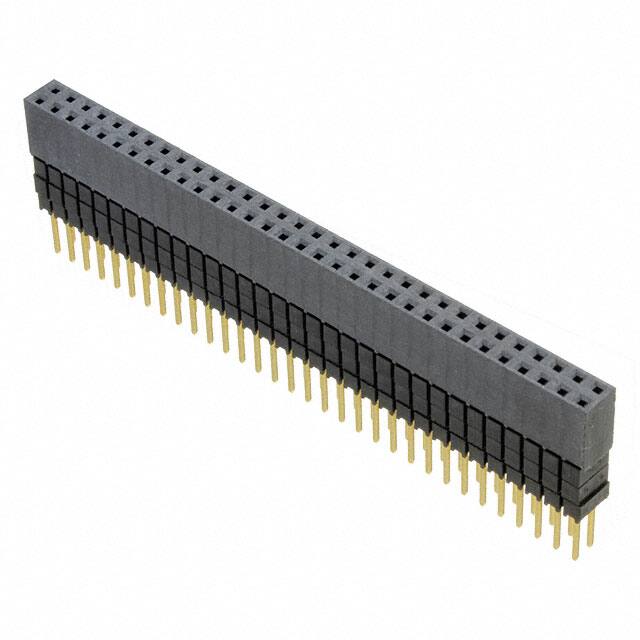

The Samtec ESQ-132-34-G-D is a 64 position elevated socket connector from the ESQ series. It features a 2.54mm (0.100") pitch and 2 rows with a row spacing of 2.54mm. The connector uses a forked contact type with phosphor bronze contacts plated with 20.0µin gold. The insulator is black glass filled polyester with a UL94 V-0 flammability rating.
This board-to-board connector is rated for 5.7A per pin (2 pins powered) and 515 VAC when mated with TSW or ESQ series. It operates over a temperature range of -55°C to +125°C. The through hole termination with solder tail lead style (lead style -34) provides reliable PCB mounting.
The connector has an insulation height of 16.13mm and a contact length of 7.11mm. It supports an insertion depth range of 3.68mm to 6.35mm and is rated for 100 mating cycles with 10µ" gold plating. The push-pull fastening type ensures secure connections.
The pitch is 2.54mm (0.100").
It has 64 positions arranged in 2 rows.
The current rating is 5.7A per pin (2 pins powered).
The voltage rating is 515 VAC when mated with TSW or ESQ series.
Through hole with solder termination.
-55°C to +125°C.
20.0µin (0.51µm) gold.
