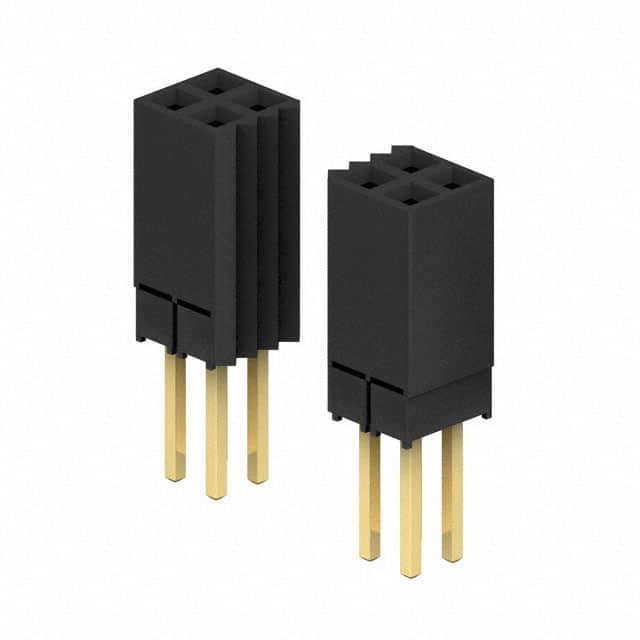

The Samtec ESQ-131-13-G-D is a 62-position elevated socket connector from the ESQ series, designed for board-to-board stacking applications. It features a 2.54mm (0.100") pitch and a through hole mounting style with solder termination. The connector uses forked phosphor bronze contacts with a gold finish (20µ" over 50µ" nickel) for reliable electrical performance.
Electrical specifications include a current rating of 5.7A per contact (with 2 pins powered) and a voltage rating of 550VAC (note: datasheet indicates 515VAC when mated with TSW or ESQ). The operating temperature range is -55°C to +125°C with gold plating. The insulation is black glass filled polyester with a UL94 V-0 flammability rating.
Mechanical features include an insulation height of 11.05mm, contact length of 7.37mm, and an insertion depth range of 3.68mm to 6.35mm. The connector is rated for 100 mating cycles with 10µ" gold contacts. It is packaged in tubes of 7 pieces.
This connector is commonly used in PC/104 and embedded systems where elevated board spacing is required. It mates with Samtec TSW, MTSW, and other compatible header series.
62 positions.
2.54mm (0.100").
5.7A per contact (2 pins powered).
550VAC (datasheet indicates 515VAC when mated with TSW or ESQ).
Through hole.
-55°C to +125°C.
Gold, 20µ" (0.51µm) over 50µ" nickel.
