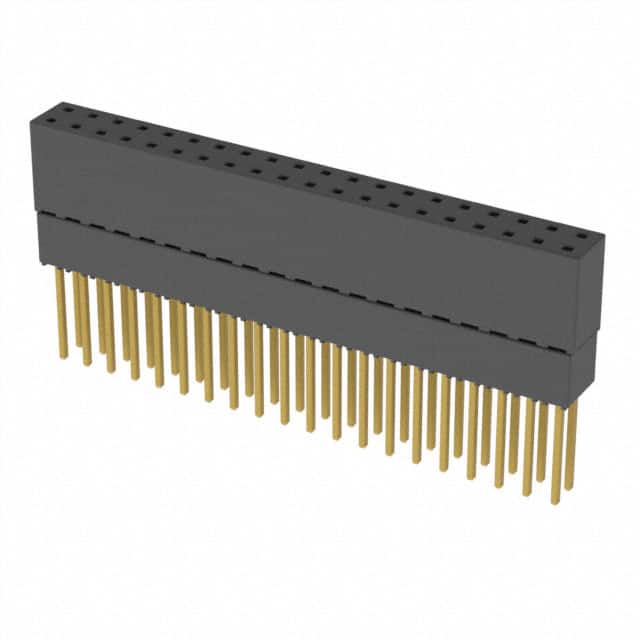

The ESQ-120-49-G-D is an elevated socket strip from Samtec's ESQ series, designed for board-to-board stacking applications requiring a higher profile. It features 40 positions arranged in a double row with a 2.54mm (0.100") pitch and row spacing. The connector uses a through hole mounting style with solder termination, making it suitable for robust PCB attachment.
The insulator is made of black glass filled polyester with a UL94 V-0 flammability rating, and the contacts are phosphor bronze with a 20µ" (0.51µm) gold finish. Electrical ratings include 5.7A per contact (with 2 pins powered) and 550VAC voltage rating. The operating temperature range is -55°C to 125°C, and the connector is rated for 100 mating cycles with 10µ" gold.
This socket strip is commonly used in PC/104 and other embedded systems requiring reliable, high-density interconnections. The push-pull fastening type ensures easy mating and unmating. Packaging is in tubes of 11 pieces.
40 positions.
2.54mm (0.100").
5.7A per contact (2 pins powered).
550VAC.
Through hole.
Gold, 20µ" (0.51µm).
-55°C to 125°C.
