| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Max Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Voltage Rating |

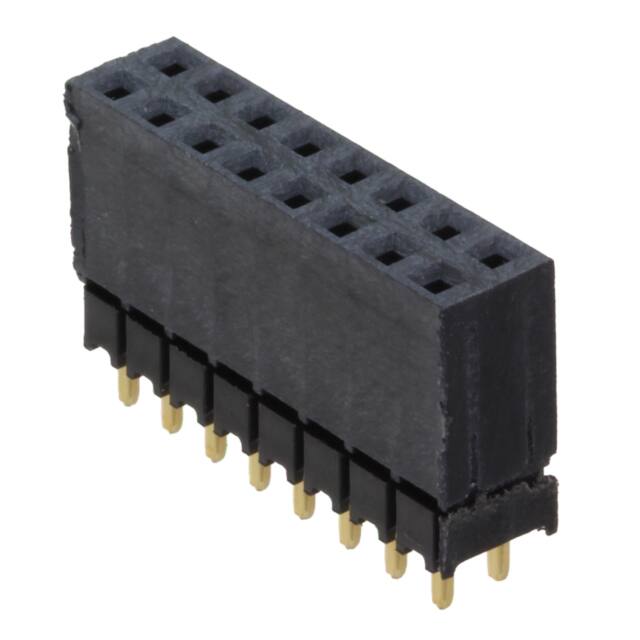

The ESQ-108-12-G-D is an elevated socket strip from Samtec Inc., part of the ESQ series designed for higher profile board spacing. It features 16 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The contacts are phosphor bronze with a 20µin (0.51µm) gold plating on the contact area and gold flash on the balance, ensuring reliable connectivity. The insulator is made of black glass filled polyester with a UL94 V-0 flammability rating.
Electrical ratings include 5.7A per contact (2 pins powered) and 550VAC (datasheet states 515VAC; verify with manufacturer). The operating temperature range is -55°C to 125°C with gold plating. The connector uses a push-pull fastening mechanism and is terminated via through hole soldering. The contact length is 2.29mm, and the insulation height is 11.05mm. Insertion depth ranges from 3.68mm to 6.35mm.
This elevated socket strip is intended for board-to-board stacking applications and is compatible with Samtec's TSW, MTSW, EW, and other header strips. It is packaged in tubes of 27 pieces. The part is not lead-free solderable; lead wave soldering is recommended.
16 positions in 2 rows.
2.54mm (0.100")
5.7A per contact (2 pins powered).
550VAC (datasheet states 515VAC; verify with manufacturer).
Through hole, solder termination.
-55°C to 125°C with gold plating.
Gold, 20µin (0.51µm) on contact area.
