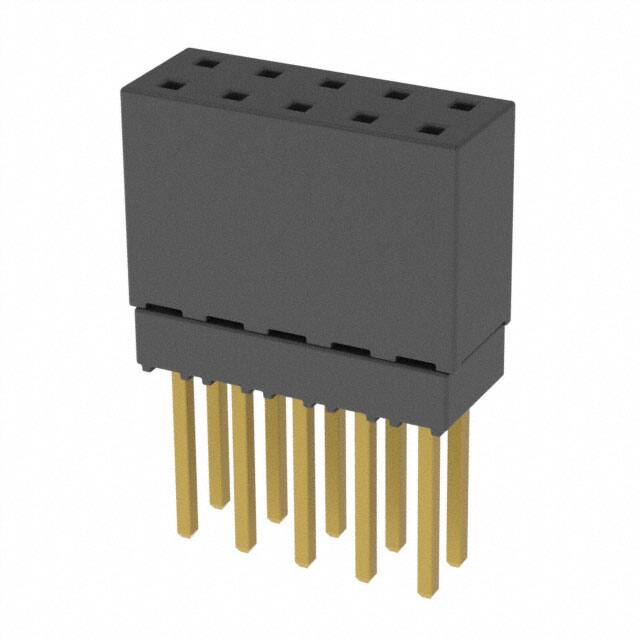

ESQ-105-13-G-D Samtec ESQ-105-13-G-D is a 10-position, 2-row through-hole elevated socket connector with 2.54mm pitch and gold contact finish.
Mfr Part #:

ESQ-105-13-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec ESQ-105-13-G-D is a 10-position, 2-row through-hole elevated socket connector with 2.54mm pitch and gold contact finish.
✓ Total Stock: 21 pcs

ESQ-105-13-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESQ-105-13-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulator Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

ESQ-105-13-G-D Description

Short technical summary and product information.

The Samtec ESQ-105-13-G-D is a 10-position elevated socket connector from the ESQ series, designed for board-to-board applications. It features a through-hole mounting style with solder termination and square tail leads. The connector has a black glass filled polyester insulator and forked phosphor bronze contacts with 20.0µin gold plating. The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").



This connector is rated for 5.7A per contact (with 2 pins powered) and has a voltage rating of 550 VAC. The operating temperature range is -55°C to +125°C, making it suitable for a wide variety of environments. The push-pull fastening type ensures secure mating with compatible headers such as the Samtec TSW series.



The 11.05mm insulation height provides elevated mating, aiding in air circulation and routing flexibility on the PCB. The square tail leads provide robust through-hole soldering. The UL94 V-0 flammability rating ensures safety compliance.

ESQ-105-13-G-D Quick Information

Product Type: Elevated Socket Connector
Series: ESQ
Canonical Name: Samtec ESQ-105-13-G-D Elevated Socket Connector
Subcategory: Rectangular Connector - Header/Receptacle

ESQ-105-13-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESQ-105-13-G-D Features

  • 10 positions in 2 rows with 2.54mm pitch.
  • Gold plated forked contacts rated at 5.7A.
  • Through-hole mounting with square tail leads.
  • Elevated socket design with 11.05mm height.
  • Black glass filled polyester insulator, UL94 V-0.

ESQ-105-13-G-D Applications

  • Board-to-board stacking in embedded systems.
  • Industrial control and automation equipment.
  • Test and measurement instrumentation.
  • PC/104 and similar bus architectures.

ESQ-105-13-G-D FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the ESQ-105-13-G-D?

The current rating is 5.7 A per contact with 2 pins powered.

What is the pitch of the ESQ-105-13-G-D?

The pitch is 2.54 mm (0.100").

How many positions does the ESQ-105-13-G-D have?

It has 10 positions, all loaded, in 2 rows.

What is the mounting type of the ESQ-105-13-G-D?

Through-hole mounting with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the voltage rating?

550 VAC per the database, though the datasheet specifies 515 VAC for a mated pair.
