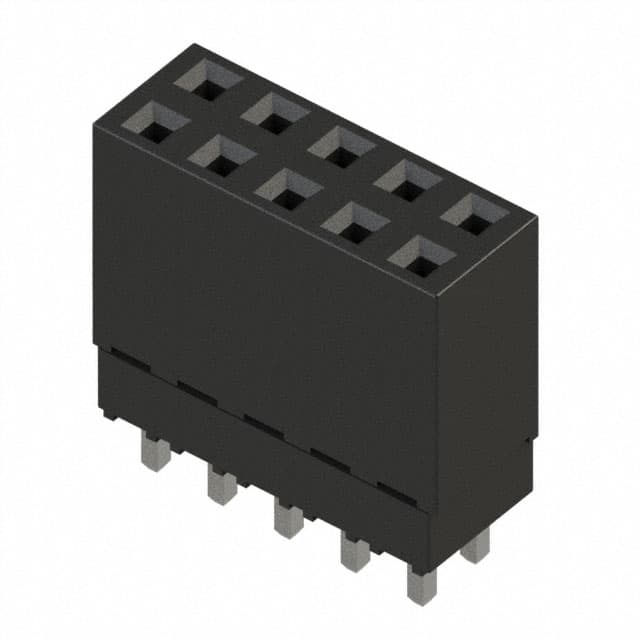

The Samtec ESQ-105-12-T-D is a 10 position elevated socket connector from the ESQ series, designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing, with a through hole mounting style and solder termination. The connector uses forked phosphor bronze contacts with a tin plating over 50 µ" nickel, and the insulator is made of black glass filled polyester with a UL94 V-0 flammability rating.
This connector is rated for 5.7A per contact and 550VAC (per existing data; datasheet specifies 515 VAC). It operates over a temperature range of -55°C to +105°C when using tin plating. The insulation height is 11.05mm, and the contact length is 2.29mm. The push-pull fastening type ensures secure mating with compatible Samtec header series such as TSW, MTSW, and others.
The ESQ-105-12-T-D is not lead-free solderable and is intended for lead wave soldering only. It is RoHS3 and REACH compliant per existing data, with an MSL of 1 (unlimited).
10 positions arranged in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
5.7A per contact when 2 pins are powered.
550VAC per existing data; datasheet specifies 515 VAC.
Through hole mounting with solder termination.
-55°C to +105°C with tin plating.
No, it is designed for lead wave soldering only.
