Mfr Part #:

ESQ-102-12-G-D

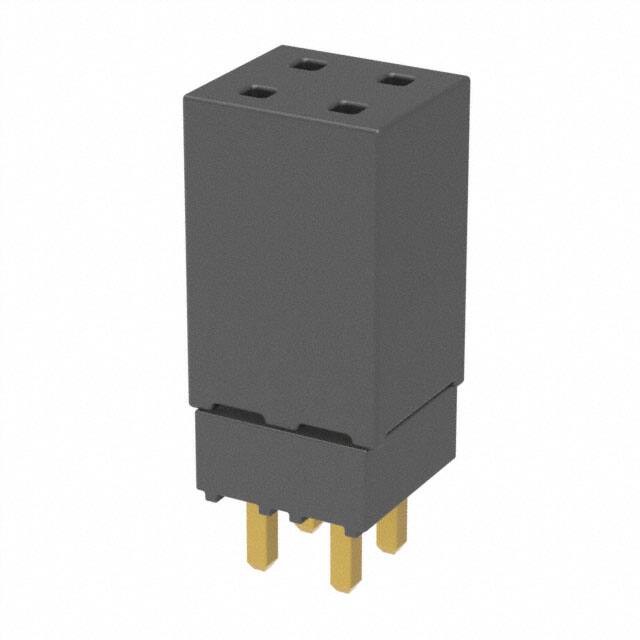

ESQ-102-12-G-D is a 4-position elevated socket from Samtec with 2 rows, 2.54mm pitch, gold contact finish, and through hole mounting. It is rated for 5.7A per contact and 550VAC.

✓ Total Stock: 18 pcs

ESQ-102-12-G-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	18 pcs On Request	18 pcs	On Request	18	On Request	On Request	On Request	On Request	On Request

ESQ-102-12-G-D Description

Short technical summary and product information.

The Samtec ESQ-102-12-G-D is a 4-position elevated socket connector from the ESQ series. It features a forked contact design with gold plating over 50µ" nickel. The connector has a pitch of 2.54mm (0.100") and a row spacing of 2.54mm, making it suitable for board-to-board applications. The through hole mounting with solder termination ensures reliable connections. Electrical ratings include 5.7A per contact (with 2 pins powered) and a voltage rating of 550VAC. The operating temperature range is -55°C to +125°C. The insulator is black glass filled polyester with UL94 V-0 flammability rating. The contact material is phosphor bronze. The insertion depth ranges from 3.68mm to 6.35mm. This connector is not lead-free solderable; it is intended for lead wave soldering only. It is designed for up to 100 mating cycles with 10µ" gold contacts. This part is RoHS3 compliant and REACH unaffected. It mates with Samtec TSW, MTSW, and other series.

ESQ-102-12-G-D Quick Information

Product Type: Elevated Socket

Series: ESQ

Canonical Name: Elevated Socket, 4 Position, 2 Row, Through Hole, Gold Contact Finish

Subcategory: Board to Board

ESQ-102-12-G-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ESQ-102-12-G-D Features

4-position elevated socket connector.
2.54mm pitch with 2 rows.
Gold contact finish for reliability.
Rated current 5.7A per contact.
Through hole mounting with solder termination.

ESQ-102-12-G-D Applications

Board-to-board interconnection in embedded systems.
Suitable for PC/104 stackthrough applications.
Used in industrial control modules.
Ideal for signal and power distribution.

ESQ-102-12-G-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the ESQ-102-12-G-D have?

It has 4 positions in 2 rows.

What is the pitch of this connector?

The pitch is 2.54mm (0.100").

What is the current rating?

5.7A per contact when 2 pins are powered.

What is the voltage rating?

550VAC.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold, 20µin over 50µin nickel.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
Connector Type	Elevated Socket
Contact Finish	Gold
Contact Finish Thickness	20.0µin (0.51µm)
Contact Length	2.29mm (0.090")
Contact Material	Phosphor Bronze
Contact Type	Forked
Current Rating	5.7A per Contact
Current Rating (Amps)	5.7A per Contact
Fastening Type	Push-Pull
Insertion Depth	(3.68 mm) .145" to (6.35 mm) .250"
Insulation Color	Black
Insulation Height	11.05mm (0.435")
Insulator Material	Black Glass Filled Polyester
Lead Spacing	2.54mm (0.100")
Lead Style	-12 (Standard Insertion Force)
Lead-Free Solderable	No, Lead Wave only
Material Flammability Rating	UL94 V-0
Max Cycles	100 with 10 µ" (0.25 µm) Au
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Plating	Au or Sn over 50 µ" (1.27 µm) Ni
Row Spacing	0.100" (2.54mm)
Style	Board to Board
Termination	Solder
Termination Style	Solder
Voltage Rating	550VAC
