| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Case Material | |
| Current | |
| Dimming | |
| Dimming Range | |
| Dimming Type | |
| Efficiency | |
| Features | |
| Flame Rating | |
| Height | |
| IP Rating | |
| Input Voltage Range | |
| Length | |
| Lifetime | |
| Max Case Temperature | |
| Mounting Type | |
| Number of Outputs | |
| Output Current | |
| Output Power | |
| Output Type | |
| Output Voltage Range | |
| Power (Watts) | |
| Power Factor | |
| Protection Features | |
| Ratings | |
| Startup Time | |
| THD | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

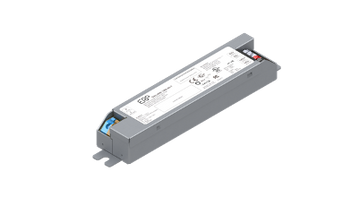

The ERP Power ESPV050W-1200-42-Z1 is a 50W constant current LED driver designed for commercial and residential lighting applications. It accepts an input voltage range of 120 to 277 Vac and provides a constant current output of 1.2A with an output voltage range of 24 to 42 Vdc. The driver achieves up to 87% typical efficiency and features a power factor greater than 0.9 with total harmonic distortion less than 20%.
The driver supports Tri-Mode dimming, compatible with 0-10V analog, TRIAC (forward-phase), and ELV (reverse-phase) dimmers, with a dimming range of 1% to 100%. It includes protections such as over-current, over-temperature, short-circuit, and output open load with auto recovery. The startup time is 300 ms typical.
The ESPV050W-1200-42-Z1 is housed in an IP66-rated plastic case with dimensions 89.0 mm x 60.0 mm x 30.1 mm and features wire leads for termination. It is chassis mountable and has a 5VA flame rating. The maximum case temperature is 90°C, and the driver has a minimum lifetime of 50,000 hours at 70°C case temperature. It complies with FCC Part 15 Class B (120 Vac)/Class A (277 Vac) and EN55015 for EMI, and meets ENERGY STAR, DLC, and CA Title 24 requirements.
120 to 277 Vac.
24 to 42 Vdc.
1.2 A.
Analog (0-10V), TRIAC, and ELV.
89.0 mm x 60.0 mm x 30.1 mm.
Yes, RoHS3 compliant.
