| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
195 pcs
|
195 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Dimming | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection | |
| Input Voltage | |
| Length | |
| Number of Outputs | |
| Output Current | |
| Output Voltage Range | |
| Power (Watts) | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

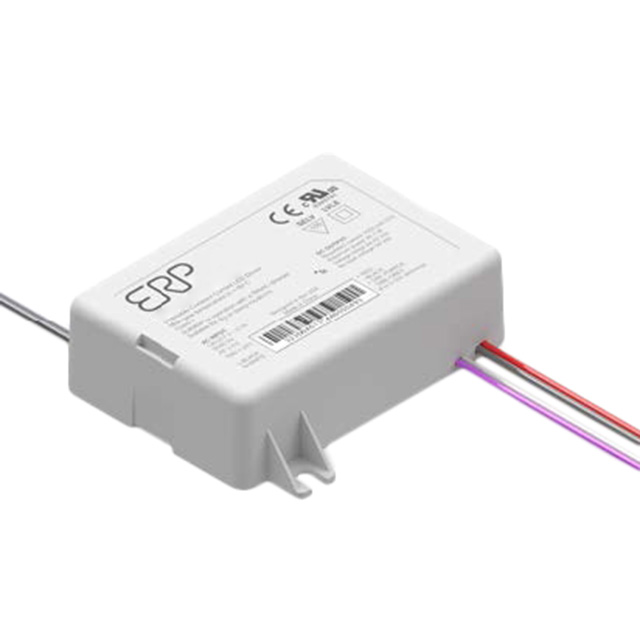

The ESPT050W-1050-42-Z1 is a constant current LED driver from ERP Power, LLC. It converts 120VAC input to a regulated 1.05A output current with an output voltage range of 28-42V, delivering 44W of power. The driver achieves 87% efficiency and employs AC-DC converter topology.
Dimming is supported via Analog, ELV (Electronic Low Voltage), and Triac controls, making it suitable for various lighting control systems. Built-in protections include Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Short Circuit Protection (SCP).
The driver features wire leads termination style and an IP64 ingress protection rating, allowing use in damp or outdoor locations. Mechanical dimensions are 84.8mm length, 59.9mm width, and 30.0mm height.
Regulatory approvals include cRUcs, SA, ENEC, FC, CE, CCC, CB, KC, NEMKO, UL, and CSA. Environmental compliance includes RoHS3, REACH unaffected, and MSL Level 1.
1.05A
120VAC
Yes, it supports Analog, ELV, and Triac dimming.
Yes, it is RoHS3 Compliant.
Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Short Circuit Protection (SCP).
IP64
84.8mm x 59.9mm x 30.0mm
