| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,147 pcs
|
3147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

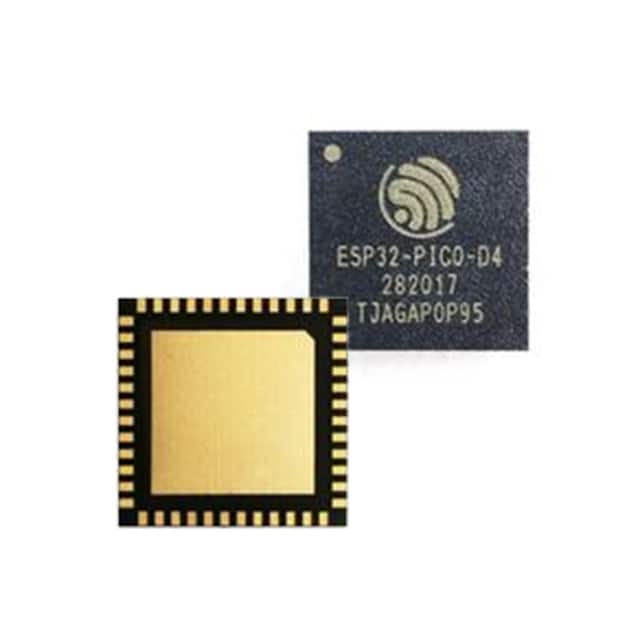

The Espressif Systems ESP32-PICO-D4 is a compact System-in-Package (SiP) module designed for wireless communication applications. It integrates Wi-Fi 802.11b/g/n and Bluetooth v4.2 BR/EDR functionalities into a single package, making it suitable for space-limited designs.
Key electrical specifications include operation within the 2.4GHz to 2.5GHz frequency band, with a data rate of up to 150Mbps and a transmit power of 20.5dBm. The module operates on a voltage range of 2.7V to 3.6V and has a sensitivity of -98.4dBm. It supports various modulation schemes including CCK, DSSS, and OFDM.
This module features 4MB of flash memory and supports multiple serial interfaces such as GPIO, I²C, I²S, PWM, SDIO, and UART. It is built around the ESP32 chipset and operates within an industrial temperature range of -40°C to 85°C.
The ESP32-PICO-D4 is designed for surface mounting, with a 48-SMD Module package. Its integrated nature and robust performance make it well-suited for battery-operated applications and IoT products like wearable electronics and sensors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the ESP32-PICO-D4 is between 2.7V and 3.6V.
The ESP32-PICO-D4 operates in a temperature range of -40°C to 85°C.
The ESP32-PICO-D4 comes in a 48-SMD Module package and is designed for surface mounting.
The ESP32-PICO-D4 supports Wi-Fi 802.11b/g/n and Bluetooth v4.2 BR/EDR.
The maximum data rate for the ESP32-PICO-D4 is 150Mbps.
The ESP32-PICO-D4 is RoHS3 Compliant.
