| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,580 pcs
|
2580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |

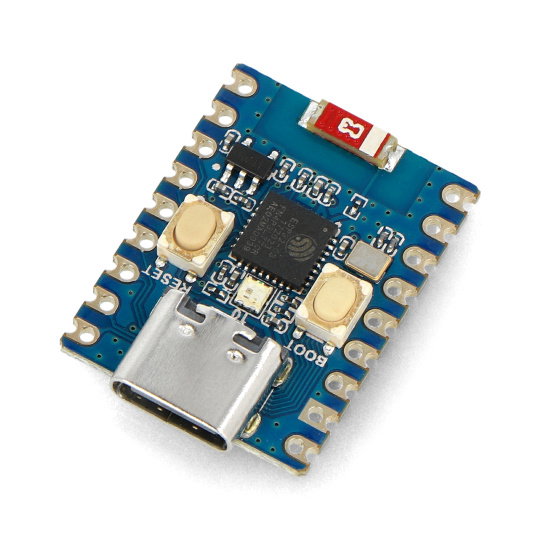

The ESP32-C3FN4 from Espressif Systems is a highly integrated, ultra-low-power System on Chip (SoC) designed for IoT applications. It features a 32-bit RISC-V single-core processor capable of operating at up to 160 MHz.
Connectivity is provided by 2.4 GHz Wi-Fi (IEEE 802.11b/g/n compliant) and Bluetooth 5 (LE). The device includes 4MB of flash memory, 400kB of SRAM, and 384kB of ROM. It supports a wide range of serial interfaces including GPIO, I²C, I²S, SPI, JTAG, UART, and USB.
This SoC operates within a voltage range of 3V to 3.6V and has an operating temperature range of -40°C to 85°C. The ESP32-C3FN4 is supplied in a 32-VFQFN Exposed Pad package and requires surface mount installation. An external antenna is not included.
Key specifications include a data rate of up to 54Mbps, a sensitivity of -105dBm, and a transmit power of 21dBm. The current consumption ranges from 84mA to 87mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ESP32-C3FN4 supports Wi-Fi 802.11b/g/n and Bluetooth v5.0.
The operating voltage range is 3V to 3.6V.
The operating temperature range is -40°C to 85°C.
It includes 4MB Flash, 400kB SRAM, and 384kB ROM.
The ESP32-C3FN4 is supplied in a 32-VFQFN Exposed Pad package.
