| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Lead Spacing | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

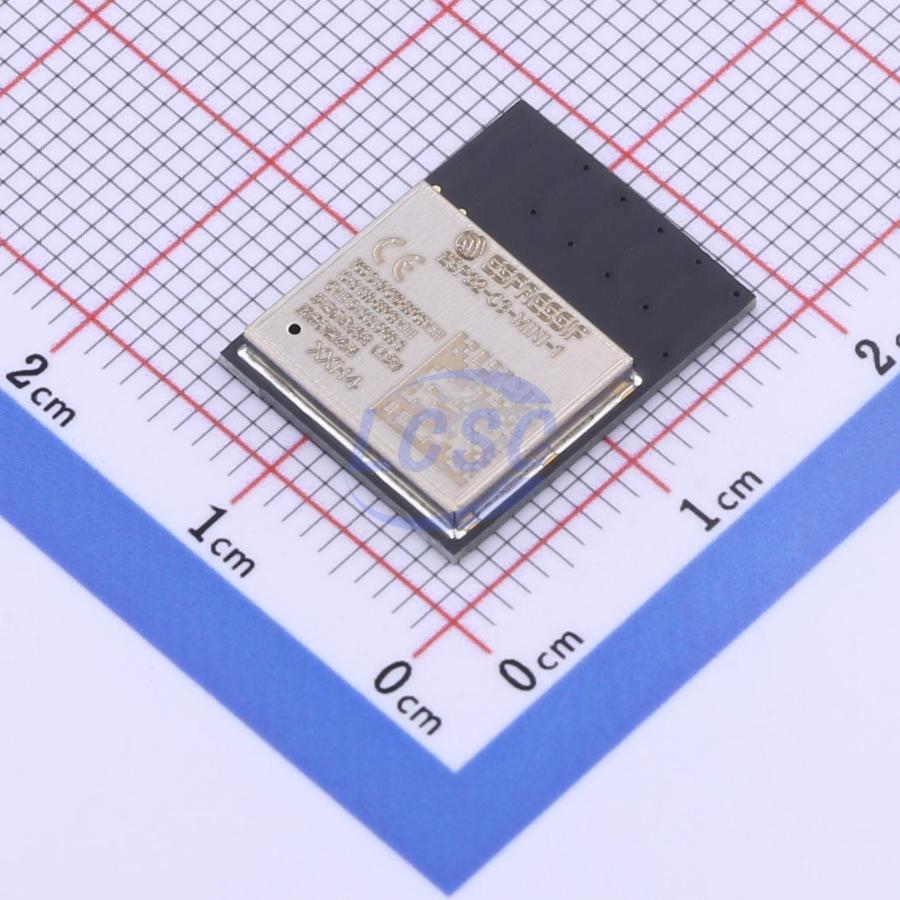

The ESP32-C3-MINI-1-H4 from Espressif Systems is a versatile RF Transceiver Module designed for wireless communication applications. It integrates a powerful ESP32-C3FH4 IC, offering a robust solution for IoT devices and embedded systems.
Key electrical specifications include an operating voltage range of 3V to 3.6V and a data rate of up to 150Mbps. The module operates in the 2.412GHz to 2.484GHz frequency band and supports protocols such as 802.11b/g/n and Bluetooth v5.0. It features a receiver sensitivity of -104dBm and a transmit power of 20.5dBm, ensuring reliable wireless connectivity.
This module comes with 4MB of Flash memory, 384kB of ROM, and 408kB of SRAM, providing ample resources for complex applications. It is equipped with a PCB Trace antenna and offers a wide range of serial interfaces including ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, and USB.
The ESP32-C3-MINI-1-H4 is designed for surface mounting and comes in a 53-SMD Module package. It operates within an ambient temperature range of -40°C to 105°C, making it suitable for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3V to 3.6V.
The package type is 53-SMD Module.
The operating temperature range is -40°C to 105°C (TA).
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
