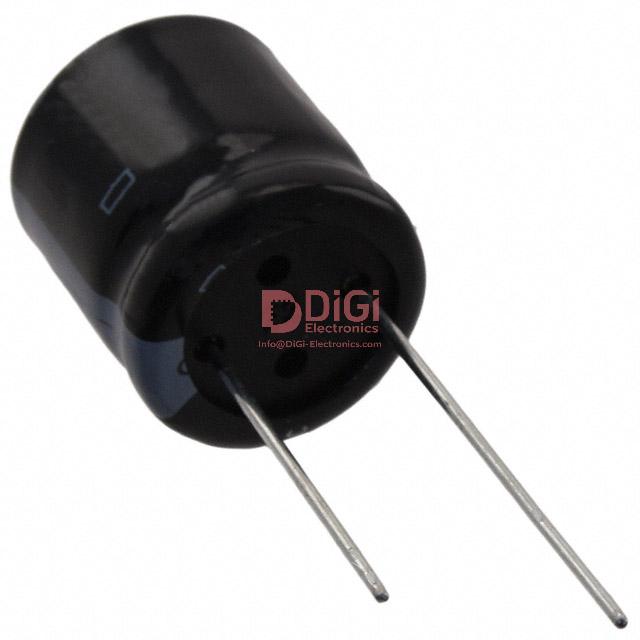

ESMG630ELL821MN20S The United Chemi-Con ESMG630ELL821MN20S is an aluminum electrolytic capacitor with a capacitance of 820µF and a rated voltage of 63V. It offers a tolerance of ±20% and a lifetime of 2000 hours at 85°C.
Mfr Part #:

ESMG630ELL821MN20S

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The United Chemi-Con ESMG630ELL821MN20S is an aluminum electrolytic capacitor with a capacitance of 820µF and a rated voltage of 63V. It offers a tolerance of ±20% and a lifetime of 2000 hours at 85°C.
✓ Total Stock: 136 pcs
$ Price Range: $1.20

ESMG630ELL821MN20S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
136 pcs
On Request
136 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESMG630ELL821MN20S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Diameter
Failure Rate
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Tolerance
View Similar Products (0)

ESMG630ELL821MN20S Description

Short technical summary and product information.

This United Chemi-Con ESMG630ELL821MN20S is an aluminum electrolytic capacitor from the SMG series. It features a capacitance of 820 µF with a tolerance of ±20% and a rated voltage of 63 V.



The capacitor is designed for general-purpose applications and operates within a temperature range of -40°C to 85°C. It has a typical ripple current rating of 1.37 A at 120 Hz and 1.644 A at 100 kHz. The lifetime is rated at 2000 hours at 85°C.



Mechanically, the component has a lead spacing of 10.00mm and dimensions of 20.00mm in diameter and 22.00mm in height. It is designed for through-hole mounting.



This part is marked as obsolete.

ESMG630ELL821MN20S Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: SMG
Canonical Name: United Chemi-Con ESMG630ELL821MN20S Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic Capacitors

ESMG630ELL821MN20S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESMG630ELL821MN20S Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

ESMG630ELL821MN20S Features

  • 820µF capacitance with ±20% tolerance.
  • Rated for 63V DC operation.
  • 2000 hours lifetime at 85°C.
  • Operates from -40°C to 85°C.
  • Through-hole mounting type.

ESMG630ELL821MN20S Applications

  • Used in general purpose power supply filtering.
  • Suitable for audio coupling and decoupling circuits.
  • Ideal for smoothing and bypass applications.
  • Common in industrial control equipment.

ESMG630ELL821MN20S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance of the ESMG630ELL821MN20S capacitor?

The capacitance is 820 µF.

What is the rated voltage for the ESMG630ELL821MN20S capacitor?

The rated voltage is 63 V.

What is the operating temperature range for this capacitor?

The operating temperature range is -40°C to 85°C.

What is the expected lifetime of the ESMG630ELL821MN20S at 85°C?

The lifetime is 2000 hours at 85°C.

What is the mounting type for the ESMG630ELL821MN20S?

The mounting type is Through Hole.
