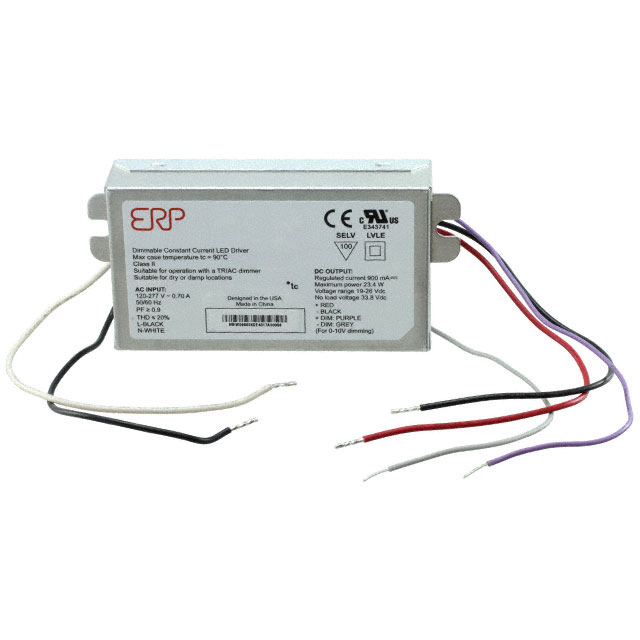

The ERP Power ESM030W-0900-26 is a constant current LED driver with an AC DC converter topology. It operates from a 120VAC input and delivers a regulated output of 900mA over a 19-26V range, providing up to 23W of power. The driver achieves 87% efficiency and supports dimming via ELV and Triac controls.
Protection features include overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP) protection. The device is rated IP20 and complies with NEMA 410, making it suitable for indoor use. It is approved by cUL, UL, cRUcs, FC, CE, and CB.
Mechanical dimensions are 106.7mm x 60.3mm x 25.2mm (4.20" x 2.37" x 0.99") with wire leads termination. The operating temperature range is -30°C to 90°C. Environmental compliance includes RoHS3, REACH unaffected, and MSL 1.
Input voltage is 120VAC. Output voltage range is 19-26V.
-30°C to 90°C.
Yes, it is RoHS3 compliant.
It supports ELV and Triac dimming.
Overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP) protection.
106.7mm x 60.3mm x 25.2mm (4.20" x 2.37" x 0.99").
cUL, UL, cRUcs, FC, CE, CB.
