| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Dimming | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| Power (Watts) | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

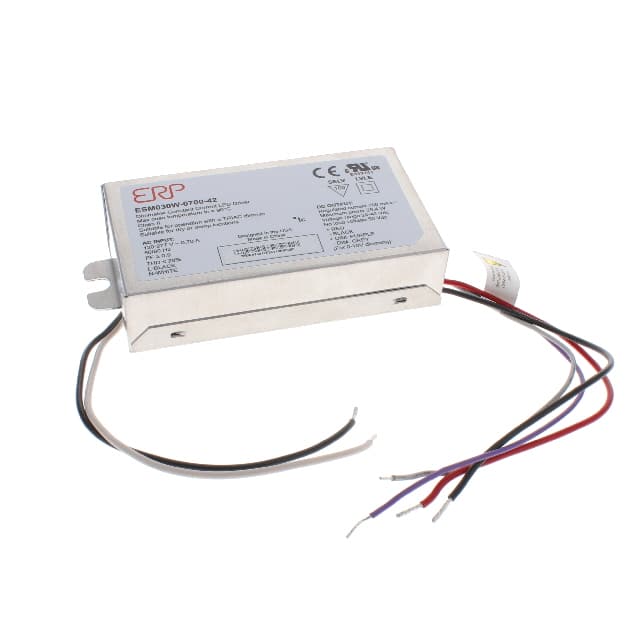

The ERP Power ESM030W-0700-42 is a constant current LED driver designed for indoor lighting applications. It accepts a 120VAC input and delivers a regulated 700mA output over a voltage range of 28-42V, providing up to 29 watts of power.
This driver features an AC-DC converter topology with an efficiency rating of 87%. It supports ELV and Triac dimming, making it suitable for dimmable LED fixtures. Protection features include overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP) protection.
The unit is housed in a compact enclosure measuring 106.7mm x 60.3mm x 25.2mm and terminates with wire leads for easy integration. It is rated IP20 for indoor use and complies with NEMA 410. Operating temperature range is -30°C to 90°C.
The output current is 700mA constant current.
The input voltage is 120VAC.
It supports ELV (Electronic Low Voltage) and Triac dimming.
The operating temperature range is -30°C to 90°C.
Yes, it is RoHS3 compliant.
