| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Current - Output | |
| Dimming | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage (AC) | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Output) | |
| Power (Watts) | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

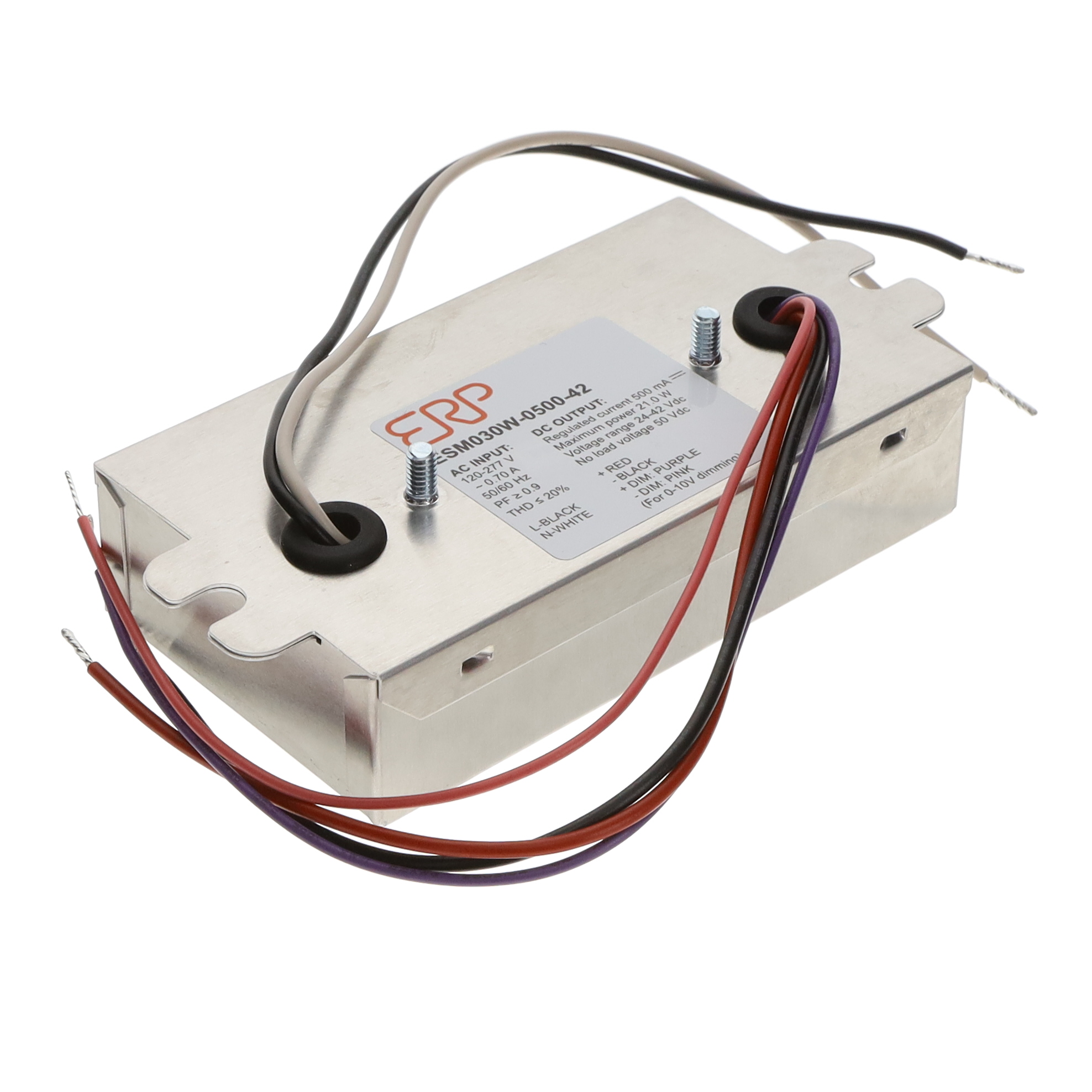

The ERP Power ESM030W-0500-42 is a constant current LED driver designed for indoor lighting applications. It operates from a 120VAC input and delivers a constant 500mA output with an adjustable voltage range of 28-42V, providing up to 21W of power. The driver achieves 87% efficiency and supports dimming via ELV and Triac controls.
Protection features include overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP) protection. The driver is rated IP20 and complies with NEMA 410. It is approved by cUL, UL, cRUcs, FC, CE, and CB. The operating temperature range is -30°C to 90°C.
Mechanically, the driver features wire leads for termination and measures 106.7mm x 60.3mm x 25.2mm. It is suitable for use in LED fixtures, downlights, and other commercial or residential lighting systems.
The output voltage range is 28-42V.
-30°C to 90°C.
Yes, it is RoHS3 compliant.
ELV and Triac dimming.
Overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP) protection.
120VAC.
cUL, UL, cRUcs, FC, CE, CB.
