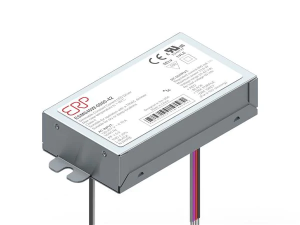

The ERP Power ESM020W-0440-34 is a constant current LED driver with an AC DC converter topology. It operates from a 120VAC input and delivers a regulated 440mA output over a voltage range of 19 to 34V, providing up to 15W of power. The driver achieves 87% efficiency and supports both ELV and Triac dimming for versatile lighting control. Protection features include overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP) protection. The unit is approved by cUL, UL, cRUcs, FC, CE, and CB agencies, and is rated IP20 and NEMA 410 for indoor use. Termination is via wire leads. The operating temperature range is -30°C to 90°C. Dimensions are 106.7 mm (length) x 60.3 mm (width) x 25.2 mm (height).
120 VAC.
19 to 34 V.
440 mA.
15 W.
ELV and Triac.
-30°C to 90°C.
Yes, RoHS3 compliant.
