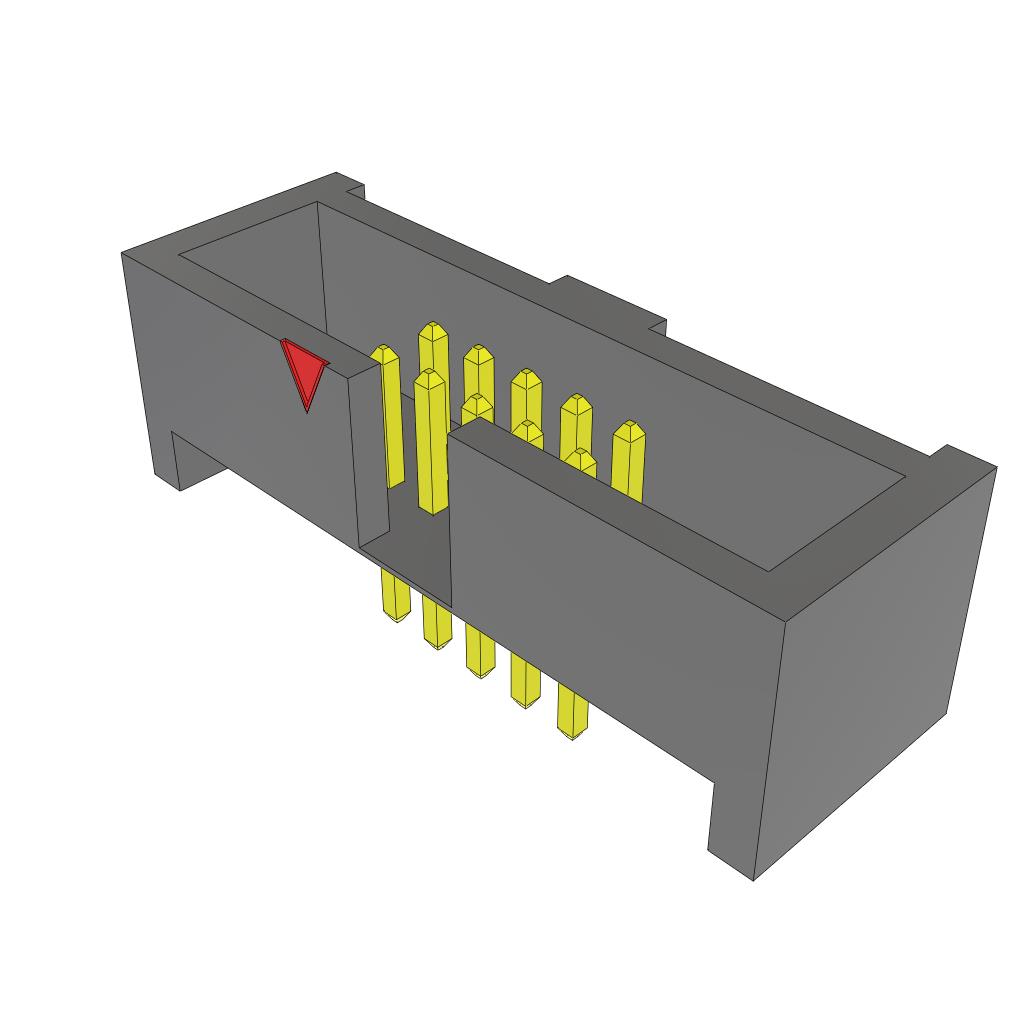

ESHF-105-01-F-D-TH This header from Samtec has 10 positions arranged in 2 rows with 1.27mm pitch. It is a through-hole, shrouded male pin connector for board-to-cable/wire applications.
Mfr Part #:

ESHF-105-01-F-D-TH

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
This header from Samtec has 10 positions arranged in 2 rows with 1.27mm pitch. It is a through-hole, shrouded male pin connector for board-to-cable/wire applications.
✓ Total Stock: 76 pcs

ESHF-105-01-F-D-TH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
76 pcs
On Request
76 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESHF-105-01-F-D-TH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

ESHF-105-01-F-D-TH Description

Short technical summary and product information.

The Samtec ESHF-105-01-F-D-TH is a 10-position, 2-row rectangular connector header designed for board-to-cable/wire interconnects. It features a 1.27mm (0.050 inch) pitch and a through-hole mounting style with solder termination. The connector has a black liquid crystal polymer (LCP) insulation body, a 4-wall shrouded design with keying slot, and a push-pull fastening mechanism. Phosphor bronze contacts with a tin flash finish provide reliable electrical performance.



The operating temperature range is -55°C to +125°C, making it suitable for a wide range of environments. The shroud and keying slot help ensure proper mating and prevent misalignment. This header mates with Samtec FFSD cable assemblies (with strain relief) and FFTP series, offering flexibility in cable-to-board connections.



Ideal for applications requiring high-density interconnects in compact spaces, the ESHF series headers are lead-free solderable and suitable for automated assembly. The 1.27mm pitch allows for significant board space savings while maintaining robust contact integrity.

ESHF-105-01-F-D-TH Quick Information

Product Type: Header
Series: ESHF
Canonical Name: Samtec ESHF-105-01-F-D-TH - 10 Position 1.27mm Pitch Header
Subcategory: Shrouded Pin Header

ESHF-105-01-F-D-TH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESHF-105-01-F-D-TH Features

  • 10 position, 2 row header with 1.27mm pitch
  • Through hole mounting with solder termination
  • Shrouded 4-wall design with keying slot
  • Black LCP insulation rated -55°C to 125°C
  • Phosphor bronze contacts with tin flash finish

ESHF-105-01-F-D-TH Applications

  • Used in board-to-cable/wire connections
  • Ideal for tight pitch designs requiring 1.27mm spacing
  • Pairs with Samtec FFSD and FFTP cable assemblies
  • Suitable for applications needing keying and shroud protection

ESHF-105-01-F-D-TH FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions, all loaded.

What is the pitch of this header?

1.27mm (0.050 inches).

What mounting type does this connector use?

Through hole.

How many rows does it have?

2 rows.

What is the operating temperature range?

-55°C to +125°C.

What contact finish is available?

Tin flash on contacts (Gold flash on post, Matte Tin on tail per -F plating).

Which cable assemblies mate with this header?

Mates with Samtec FFSD (with strain relief) and FFTP series.
