| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,333 pcs
|
4333 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

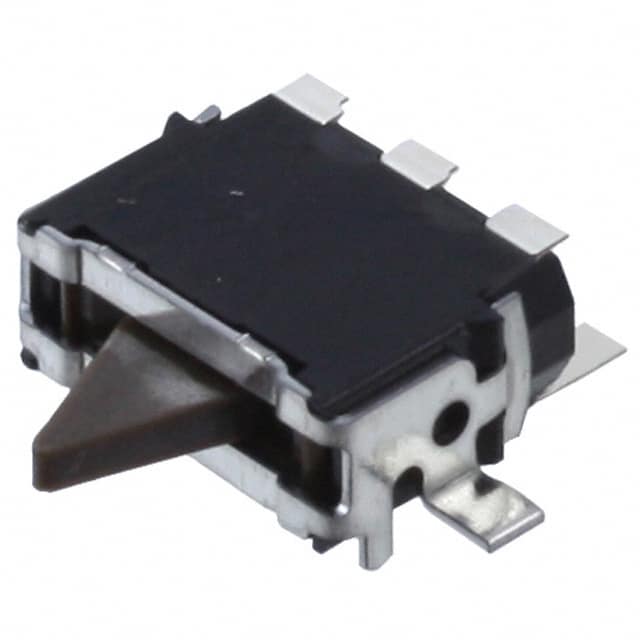

The Panasonic Electronic Components ESE-24MH1T is a detector switch designed for various applications requiring precise switching. It features an SPDT (Single Pole Double Throw) circuit configuration, making it versatile for control and detection tasks.
This switch operates at a voltage rating of 5V and has a current rating of 10mA (DC). The operating force required is 35gf, and it is designed with an angled toggle actuator. The switch function is Mom-Off-Mom, indicating its momentary and maintained states.
Designed for modern electronic assemblies, the ESE-24MH1T utilizes a surface mount, right-angle mounting type with an SMD (SMT) Tab termination style. It operates within a temperature range of -10°C to 70°C. The switch is classified under RoHS3 compliance and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the ESE-24MH1T switch is 5 V.
The operating temperature range is -10°C to 70°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
