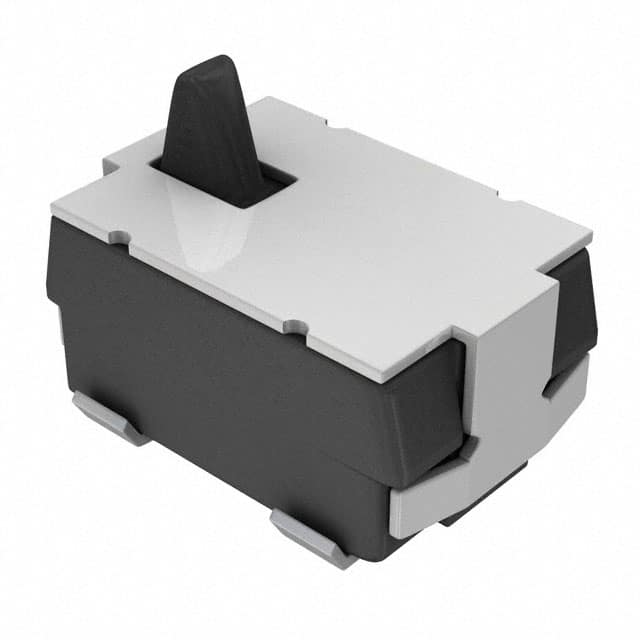

ESE-16J001 The Panasonic Electronic Components ESE-16J001 is a detector switch with a SPST-NO circuit and Off-Mom function. It operates at 5V and has a current rating of 10mA.
Mfr Part #:

ESE-16J001

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ESE-16J001 is a detector switch with a SPST-NO circuit and Off-Mom function. It operates at 5V and has a current rating of 10mA.
✓ Total Stock: 6,600 pcs
$ Price Range: $0.75

ESE-16J001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,600 pcs
On Request
6600 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESE-16J001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Mounting Type
Operating Force
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

ESE-16J001 Description

Short technical summary and product information.

This Panasonic Electronic Components ESE-16J001 is a detector switch belonging to the ESE11 series. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration and an Off-Mom switch function.



Designed for surface mounting, this switch has an angled toggle actuator and a termination style of SMD (SMT) Tab. It operates at a voltage rating of 5V DC and can handle a current of 10mA DC. The operating temperature range for this component is -10°C to 60°C.



Key specifications include an operating force of 25gf. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. This component is suitable for applications requiring a compact and reliable detector switch with surface mount capabilities.

ESE-16J001 Quick Information

Product Type: Detector Switch
Series: ESE11
Canonical Name: Panasonic Electronic Components ESE-16J001 SPST-NO Detector Switch
Subcategory: Detector Switch

ESE-16J001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESE-16J001 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ESE-16J001 Features

  • SPST-NO circuit configuration.
  • 5V DC voltage rating.
  • 10mA DC current rating.
  • Surface mountable design.
  • SMD (SMT) Tab termination style.

ESE-16J001 Applications

  • Ideal for position detection.
  • Suitable for automated assembly.
  • Compact detector switch applications.
  • Used in electronic control systems.

ESE-16J001 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ESE-16J001 switch?

The operating voltage for the ESE-16J001 switch is 5V.

What is the current rating of the ESE-16J001 detector switch?

The current rating of the ESE-16J001 detector switch is 10mA (DC).

What is the operating temperature range for the ESE-16J001?

The operating temperature range for the ESE-16J001 is -10°C to 60°C.

What type of mounting is used for the ESE-16J001 switch?

The ESE-16J001 switch uses Surface Mount mounting.

What is the termination style of the ESE-16J001?

The termination style of the ESE-16J001 is SMD (SMT) Tab.
