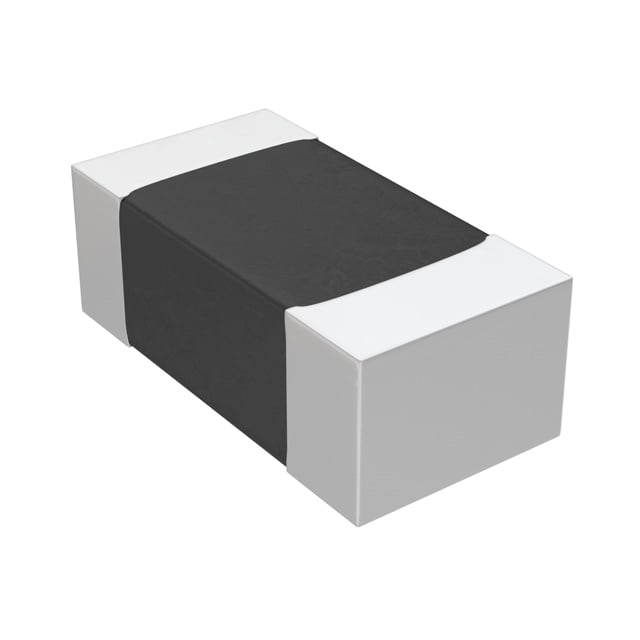

The ESDU03A24VR25V is an ultra-low capacitance ESD suppressor from Stackpole Electronics, part of the ESDU series. It is designed to protect sensitive electronics from electrostatic discharge (ESD) events while maintaining signal integrity for high-speed data lines.
Key electrical specifications include a maximum continuous operating voltage of 24 VDC, a typical clamping voltage of 25 V, and a trigger voltage of 250 V typical. The device features an ultra-low capacitance of less than 0.05 pF measured from 1 MHz to 1.8 GHz, ensuring minimal signal distortion. Leakage current is less than 1 nA, and response time is less than 1 nanosecond.
The ESDU03A24VR25V is packaged in a 0603 (1608 Metric) surface mount configuration with body dimensions 1.55 mm x 0.80 mm x 0.45 mm. It is RoHS3 and REACH compliant, lead-free, and halogen-free. Typical applications include protection of high-speed data ports such as USB 2.0 and IEEE1394, as well as use in notebook PCs, cell phones, digital cameras, and LCD TVs.
The typical clamping voltage is 25 V.
The maximum continuous operating voltage is 24 VDC.
The package is 0603 (1608 Metric) surface mount.
It has an ultra-low capacitance of less than 0.05 pF measured from 1 MHz to 1.8 GHz.
It meets IEC 61000-4-2 level 4 with 8 kV contact discharge and 15 kV air discharge, and can withstand over 1000 pulses.
The typical response time is less than 1 nanosecond.
