| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,000 pcs
|
90000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Breakdown Voltage (Vbr) | |
| Capacitance (Cj) | |
| Capacitance @ Frequency | |
| Clamping Voltage (Typical @ IPP=16 A, TLP (100 ns, 4 ns rise) | |
| Clamping Voltage (Typical @ IPP=4 A, 8 x 20 µs pulse) | |
| Clamping Voltage (Typical @ IPP=8 A, TLP (100 ns, 4 ns rise) | |
| ESD Rating (IEC 61000-4-2) (Minimum @ Air discharge) | |
| ESD Rating (IEC 61000-4-2) (Minimum @ Contact discharge) | |
| Halogen Free | |
| Lead Solder Temperature | |
| Mounting Type | |
| Number of Bidirectional Channels | |
| Operating Junction Temperature Range | |
| Operating Temperature | |
| Package / Case | |
| Power Line Protection | |
| Reverse Leakage Current (IR) | |
| Reverse Standoff Voltage (Vrwm) | |
| Standard Package Quantity | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

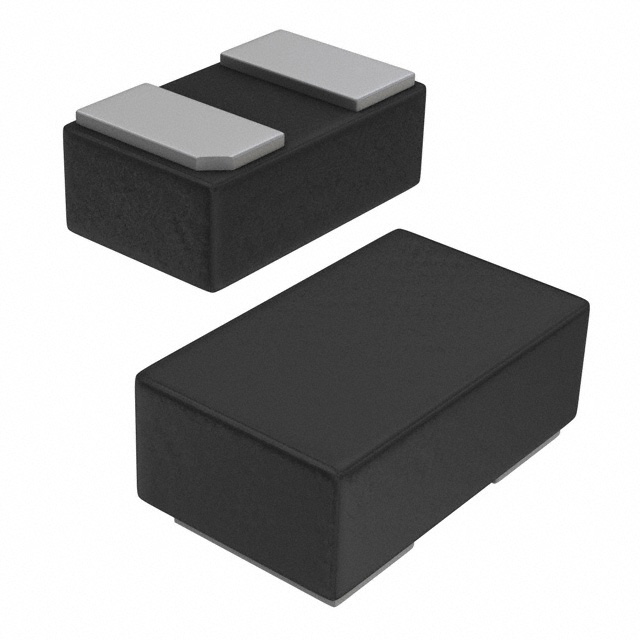

The ESDM1131MX4T5G is a single-channel bidirectional TVS diode designed to protect sensitive electronic components from electrostatic discharge (ESD).
This device offers ±16kV contact and air discharge ESD protection per IEC 61000-4-2 Level 4, with a low typical clamping voltage of 5.6V at 4A (8x20µs pulse). It features a reverse standoff voltage of 3.3V, breakdown voltage range of 4.0V to 6.0V (at 1mA), and very low reverse leakage current of 0.1µA.
With a typical capacitance of 4pF (at 0V, 1MHz), it is suitable for high-speed data line protection in portable electronics. The device is housed in an ultra-small 01005 (0402 metric) 2-X4DFN package measuring only 0.445mm x 0.240mm, making it ideal for space-constrained applications.
The ESDM1131MX4T5G is Pb-free, halogen-free/BFR-free, and RoHS3 compliant. It is supplied in tape and reel packaging with a standard quantity of 10,000 pieces per reel.
The reverse standoff voltage is 3.3V.
The breakdown voltage is 4.0V minimum, 5.0V typical, and 6.0V maximum at 1mA test current.
The typical clamping voltage is 5.6V at 4A peak pulse current (8x20µs pulse).
It comes in a 01005 (0402 metric) 2-X4DFN package measuring 0.445mm x 0.240mm.
It is rated for ±16kV contact and ±16kV air discharge per IEC 61000-4-2 (Level 4).
The typical capacitance is 4pF at 0V bias and 1MHz.
