| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
975,000 pcs
|
975000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Peak Pulse Current | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Reverse Stand-off Voltage | |
| Supplier Device Package | |
| Termination Style | |
| Type | |
| Voltage |

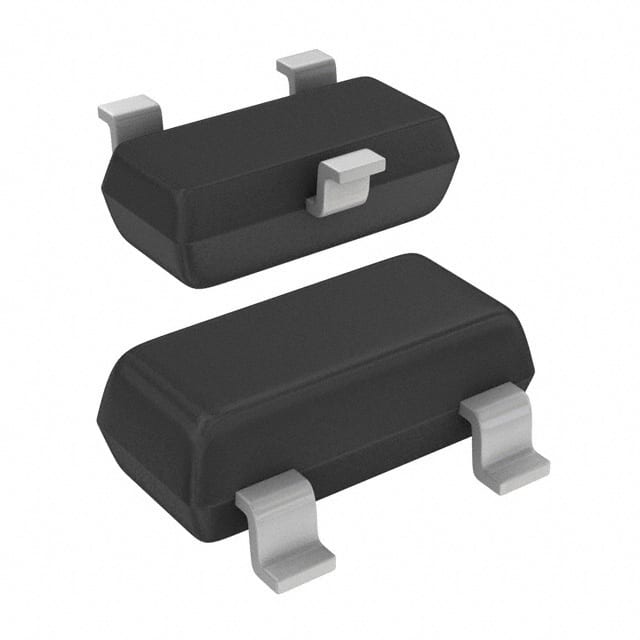

The ESDLIN03-1BWY is a bidirectional TVS diode from STMicroelectronics designed for automotive applications. It provides transient voltage protection with a reverse stand-off voltage of 26.5V and a clamping voltage of 44V at a peak pulse current of 3A (8/20µs).
The device offers a peak pulse power dissipation of 250W and features a low capacitance of 3pF at 1MHz, making it suitable for high-speed signal lines. It operates over a junction temperature range of -55°C to 175°C.
Housed in a surface-mount SC-70/SOT-323 package with gull wing terminals, the ESDLIN03-1BWY is RoHS3 compliant and REACH unaffected. It is rated MSL Level 1 for unlimited floor life.
26.5V.
44V at 3A peak pulse current (8/20µs).
3A (8/20µs).
SC-70, SOT-323 (SOT-323-3).
250W.
Yes, RoHS3 compliant.
-55°C to 175°C (junction).
