| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Clamping Voltage (Typ) | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Peak Pulse Current (8/20µs) | |
| Power | |
| Power - Peak Pulse | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

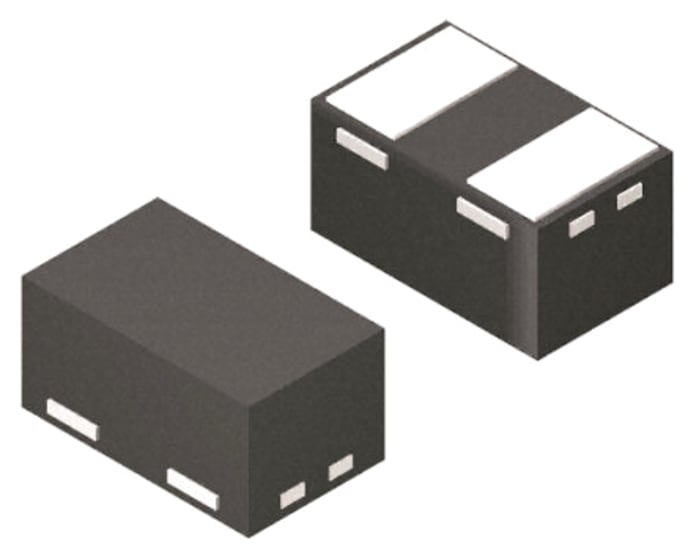

The ESDAULC5-1BF4 is a bidirectional TVS diode designed for general purpose applications. It features a reverse standoff voltage of 3V and a typical clamping voltage of 13.5V. With a peak pulse current rating of 10A (8/20µs) and peak pulse power of 140W, it provides protection against transient voltage spikes. The device has a single bidirectional channel and is not designed for power line protection. It is housed in a 0201 (0603 metric) surface mount package with an operating temperature range of -40°C to 150°C.
The reverse standoff voltage is 3V.
Typical clamping voltage is 13.5V.
10A at 8/20µs waveform.
It comes in an 0201 (0603 metric) surface mount package.
Yes, it has one bidirectional channel.
-40°C to 150°C.
