| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49,000 pcs
|
49000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Number of Unidirectional Channels | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Peak Pulse Current | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The ESDA8V2-1MX2 is a unidirectional TVS (transient voltage suppression) diode manufactured by STMicroelectronics. It is designed to protect sensitive electronics from voltage transients induced by lightning, ESD, and other surge events. With a peak pulse power rating of 500W (8/20µs waveform), this device provides robust clamping performance.
The diode features a reverse standoff voltage of 5V, allowing it to be used in low-voltage applications. Its clamping voltage is rated at 18.5V, and it can handle a peak pulse current of 27A (8/20µs). The typical capacitance is 350pF at 1MHz, which is suitable for high-speed data lines.

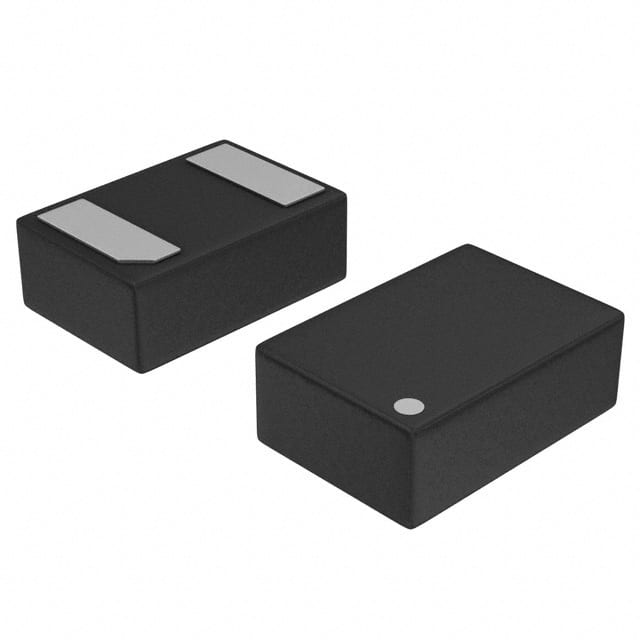

The ESDA8V2-1MX2 is offered in a compact 2-UFDFN surface mount package (2-µQFN, 1.45x1.0mm), occupying minimal board space. It is rated for operation over a wide temperature range of -40°C to 125°C (junction temperature). The device is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
This TVS diode is suitable for general-purpose transient protection in consumer, industrial, and telecommunications equipment. Its low profile and high power density make it ideal for space-constrained designs.
The reverse standoff voltage is 5V.
The clamping voltage is 18.5V.
The peak pulse current is 27A for an 8/20µs waveform.
It is available in a 2-UFDFN surface mount package (2-µQFN, 1.45x1.0mm).
The peak pulse power is 500W maximum.
The typical capacitance is 350pF at 1MHz.
The operating temperature range is -40°C to 125°C (junction temperature).
