| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Number of Unidirectional Channels | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Peak Pulse Current | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |
The ESDA15P60-1U1M is a unidirectional TVS diode from STMicroelectronics designed for general purpose transient voltage suppression. It features a reverse standoff voltage of 13.2V and a clamping voltage of 22.7V, providing robust protection against voltage spikes. With a peak pulse power rating of 1200W and a peak pulse current of 57A (8/20µs waveform), it can handle high-energy transients.

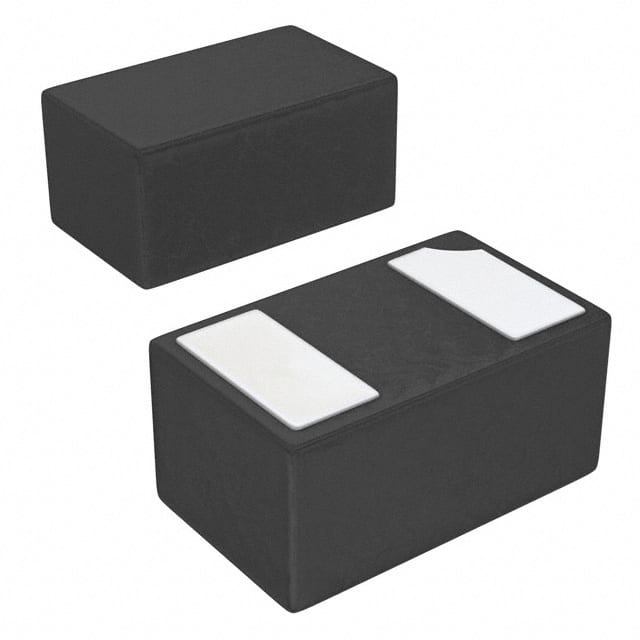

The device is housed in a compact 2-UDFN surface mount package (supplier device package 1610), making it suitable for space-constrained applications. It operates over a wide temperature range from -55°C to 150°C (junction). The part is single-channel unidirectional and does not provide power line protection.
Typical applications include general purpose circuit protection for portable electronics, communication interfaces, and I/O lines where ESD and transient suppression are required.
The reverse standoff voltage is 13.2V.
The clamping voltage is 22.7V.
The peak pulse current is 57A (8/20µs waveform).
It comes in a 2-UDFN surface mount package with supplier device package 1610.
The peak pulse power is 1200W (1.2kW).
The operating temperature range is -55°C to 150°C (junction).
One unidirectional channel.
