BAT54JFILM-HQ
STMicroelectronics
The STMicroelectronics BAT54JFILM-HQ is a Schottky diode array designed for surface mount applications. It offers a 40V reverse voltage and 200mA average rectified current per diode.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,374 pcs
|
4374 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,423 pcs
|
3423 pcs | On Request | 1 | On Request | On Request | 1151+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

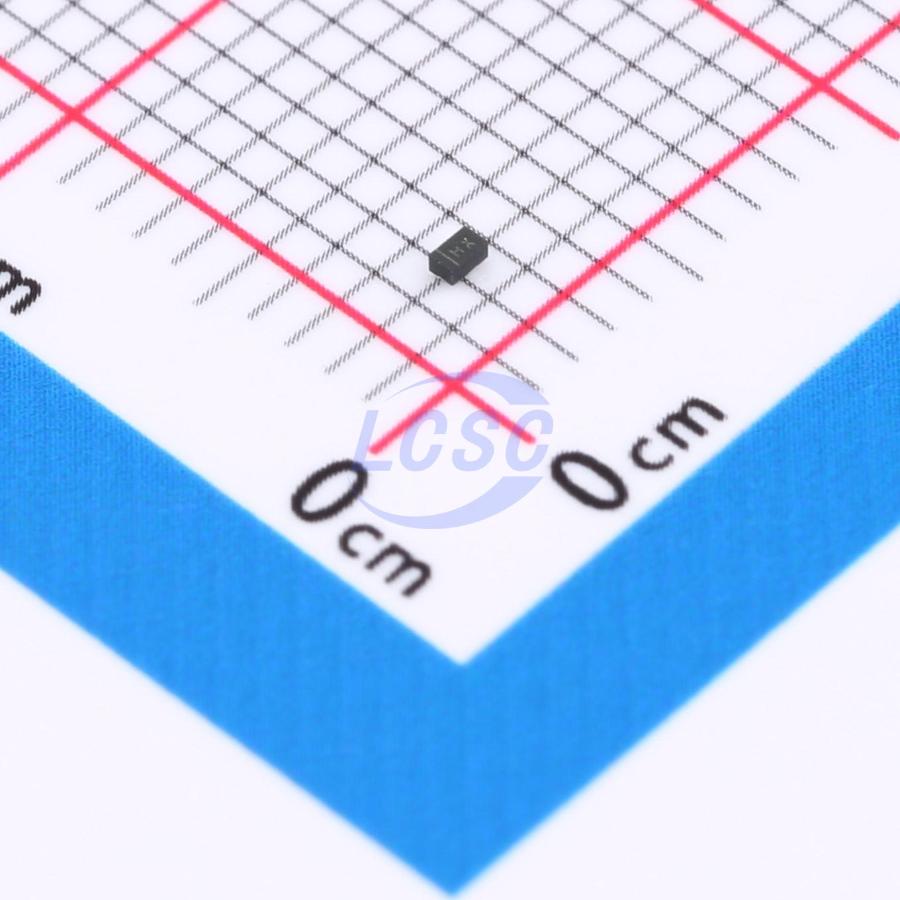

The Will Semiconductor ESD9X5VL-2/TR is a unidirectional TVS (Transient Voltage Suppressor) diode designed for ESD protection. It operates with a 5V reverse standoff voltage and has a minimum breakdown voltage of 7V. The maximum clamping voltage at a peak pulse current of 1A (10/1000µs waveform) is 11V.
This TVS diode is housed in an FBP-02C package, suitable for surface mounting. Its primary function is to protect sensitive electronic components from transient voltage spikes, particularly those associated with electrostatic discharge.
Key electrical characteristics include a 5V maximum reverse standoff voltage and a 7V minimum breakdown voltage. The device can handle a peak pulse current of 1A, with a maximum clamping voltage of 11V under these conditions. The FBP-02C package is a common choice for compact surface-mount applications where space is a constraint.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse standoff voltage is 5V.
The minimum breakdown voltage is 7V.
The maximum clamping voltage is 11V at 1A (10/1000µs).
The peak pulse current rating is 1A for a 10/1000µs waveform.
It is in the FBP-02C package.
