| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
107,713 pcs
|
107713 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
5,233 pcs
|
5233 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,180 pcs
|
2180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |

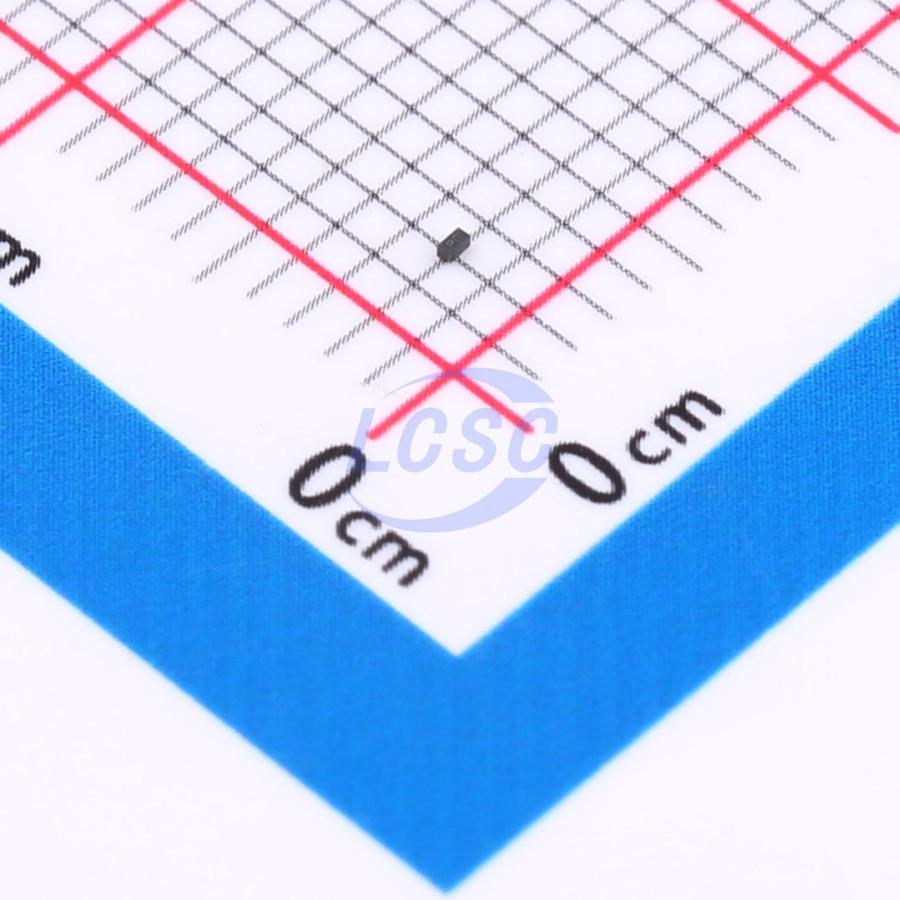

The ESD5311Z-2/TR from Will Semiconductor is a bidirectional Transient Voltage Suppressor (TVS) diode. It is designed to protect sensitive electronic components from transient overvoltage events.
Key electrical specifications include a 5V typical reverse standoff voltage and a minimum breakdown voltage of 7.5V. The device can handle a peak pulse current of 4A (8/20us waveform), with a maximum clamping voltage of 21V at this current. Its bidirectional nature makes it suitable for AC line applications or protecting signals that swing both positive and negative.
This ESD protection device is housed in a compact DFN0603-2 package, making it ideal for space-constrained designs. It is intended for surface mount assembly.
The ESD5311Z-2/TR is manufactured by Will Semiconductor and falls under the category of ESD Protection Diodes / TVS Diodes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 5V.
The minimum breakdown voltage is 7.5V.
The peak pulse current rating is 4A for a 10/1000 S waveform.
The ESD5311Z-2/TR is in a DFN0603-2 package.
Yes, the RoHS status is RoHS3 Compliant.
