| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Channels | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel |
The ESD3V3D9-TP is a Transient Voltage Suppressor (TVS) Diode manufactured by MCC. It is designed for general-purpose applications requiring robust protection against voltage spikes and transient surges.
Key electrical specifications include a 3.3V reverse standoff voltage, a minimum breakdown voltage of 5V, and a maximum clamping voltage of 8.8V at 5A (8/20µs). The diode can handle a peak pulse current of 5A and a peak pulse power of 100W. Its capacitance is rated at 35pF at 1MHz.

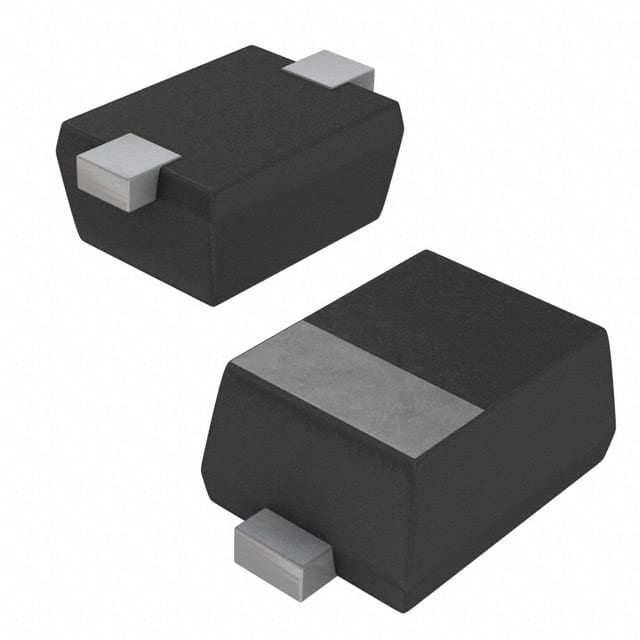

This TVS diode operates within a temperature range of -55°C to 150°C. It is housed in a compact SOD-923 surface mount package, suitable for space-constrained designs.
The ESD3V3D9-TP is suitable for protecting sensitive electronics from electrostatic discharge and voltage transients in various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 3.3V.
The peak pulse current rating is 5A.
The peak pulse power is 100W.
The operating temperature range is -55°C to 150°C.
The ESD3V3D9-TP diode is supplied in a SOD-923 surface mount package.
