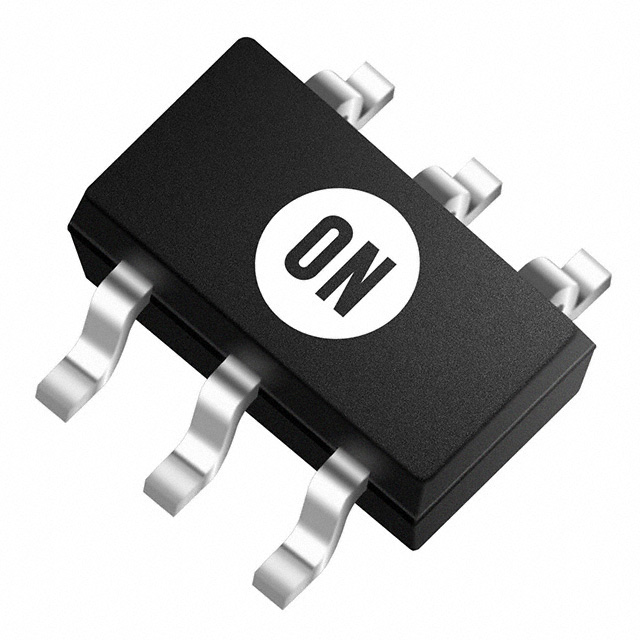

The ESD1L001W1T2G from On Semiconductor is a low capacitance ESD protection diode designed to protect four high-speed data lines from electrostatic discharge. It meets IEC 61000-4-2 Level 4 requirements, with contact discharge capability of ±8 kV and air discharge of ±15 kV.
Key electrical characteristics include a reverse working voltage of 5 V, typical breakdown voltage of 16.5 V at 1 mA, and low clamping voltage of 30 V typical at 16 A TLP. The ultra-low junction capacitance of 0.3 pF (typical, I/O to GND) ensures signal integrity for high-speed interfaces.
The device is offered in a space-saving SC-88/SC-70-6 surface mount package, suitable for automated assembly. Operating temperature range is -55°C to +125°C. The component is RoHS compliant and lead-free (Pb-Free). Typical applications include USB 2.0/3.0, HDMI, LVDS, and other high-speed differential pairs.
5 V
16.5 V (minimum at 1 mA)
30 V at 16 A TLP (I/O to GND)
SC-88 (SC-70-6) surface mount package
0.3 pF typical (I/O to GND)
±8 kV contact, ±15 kV air per IEC 61000-4-2
4 unidirectional channels
