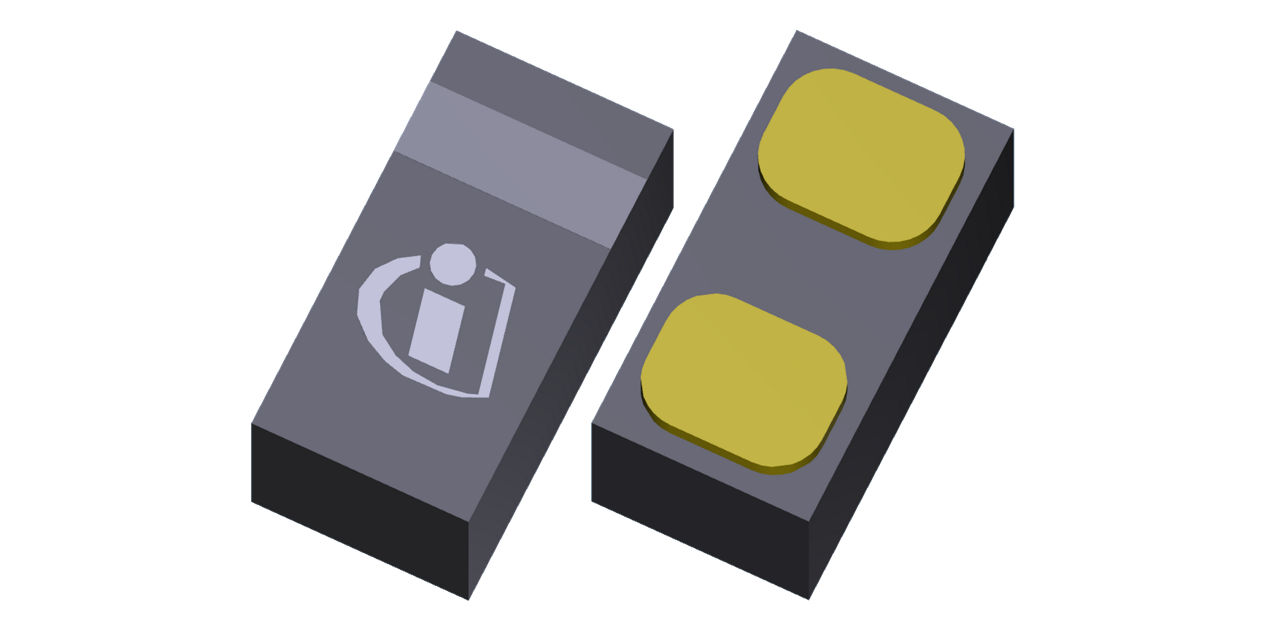

The Infineon ESD101-B1-02ELS is a bi-directional Transient Voltage Suppressor (TVS) diode designed for robust protection of sensitive electronic components. It is specifically tailored for safeguarding capacitance-susceptible applications such as super high-speed interfaces and RF antennas against electrostatic discharge (ESD) and other transient events.
This device offers a working voltage of up to ±5.5 V and exhibits extremely low capacitance, typically 0.1 pF at 1 GHz, making it suitable for high-frequency signal lines without introducing significant signal degradation. It meets stringent protection standards, including IEC61000-4-2 for ESD with ±14 kV air and ±12 kV contact discharge, IEC61000-4-4 for EFT with ±1.5 kV/±30 A, and IEC61000-4-5 for surge with ±2 A.
The ESD101-B1-02ELS is qualified for industrial applications according to JEDEC standards. It comes in a small form factor SMD package, specifically TSSLP-2-4, supporting surface mount assembly. The device is RoHS and halogen-free compliant, aligning with environmental regulations.
Key electrical characteristics include a typical clamping voltage of 30 V at 16 A and a very low reverse current of less than 0.1 nA. Its bi-directional and symmetric I/V characteristics simplify design and assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum working voltage is 5.5 V (bi-directional).
The typical capacitance is 0.1 pF at 1 GHz.
The typical clamping voltage is 30 V at 16 A TLP.
It provides ±14 kV air discharge and ±12 kV contact discharge per IEC61000-4-2.
The maximum reverse current is less than 0.1 nA.
It is available in a TSSLP-2-4 surface-mount package.
Yes, it is halogen-free.
