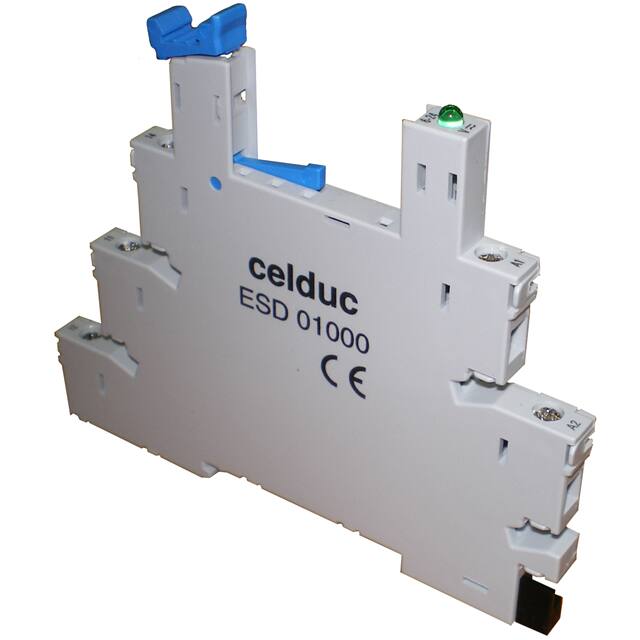

The Celduc Inc. ESD01000 is a relay socket designed for DIN rail mounting, offering a secure and efficient solution for relay integration. It features screw terminals for reliable connections and is compatible with both electromechanical relays and Celduc's SLD (DC output) and SLA (AC output) solid-state relays.
This socket supports a maximum wire section of 2.5 mm² (AWG 14) and requires a 2.5 x 0.5 mm screwdriver for termination. The screw torque specification is 0.5 Nm. The compact design includes a width of 6 mm, making it suitable for space-constrained applications.
Key electrical characteristics for compatible relays include input resistance values ranging from 300 to 1850 Ohms and typical input currents from 12 mA to 13 mA, depending on the specific relay model and operating voltage. The ESD01000 is built to facilitate the integration of these relays into various control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ESD01000 socket is compatible with Celduc's SLD series (DC output) and SLA series (AC output) solid-state relays, as well as electromechanical relays.
The maximum wire section supported by the ESD01000 relay socket is 2.5 mm², equivalent to AWG 14.
A 2.5 x 0.5 mm screwdriver is required for the screw terminals of the ESD01000 socket.
The specified torque for the screw terminals on the ESD01000 socket is 0.5 Nm.
The width of the Celduc ESD01000 relay socket is 6 mm.
