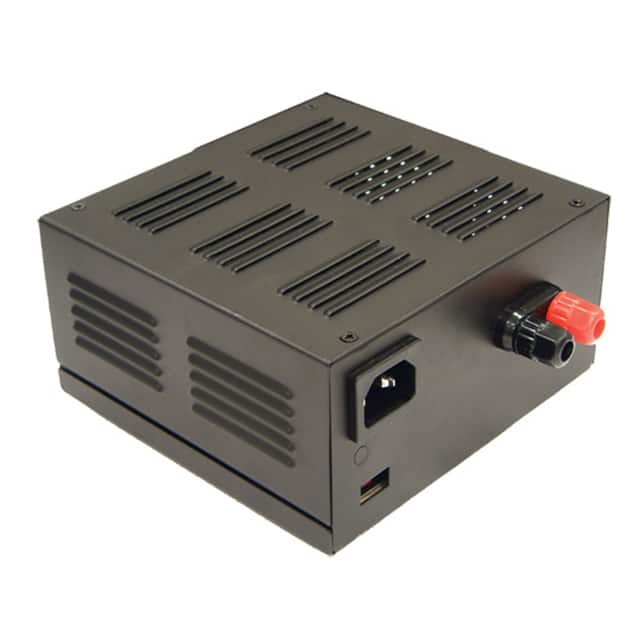

The Mean Well USA ESC-120-54 is an enclosed AC/DC power supply designed for ITE (Commercial) and Laboratory applications. It provides a single output of 54V at 2A, delivering a total power of 108W. The converter features a universal input voltage range of 88-264V AC and an efficiency of 84%.
With its benchtop mounting type, the ESC-120-54 is suitable for various setups. It operates within a temperature range of -10°C to 60°C with derating. The unit measures 150mm x 140mm x 75mm and comes in a standard package of 8 pieces. It also includes features like adjustable output and protection against over-polarity.
This model has been discontinued and replaced by the ENC-120-48.
The output voltage is 54V.
The maximum output current is 2A.
The power rating is 108W.
The operating temperature range is -10°C to 60°C with derating.
The dimensions are 150mm x 140mm x 75mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
