| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,400 pcs
|
5400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel |

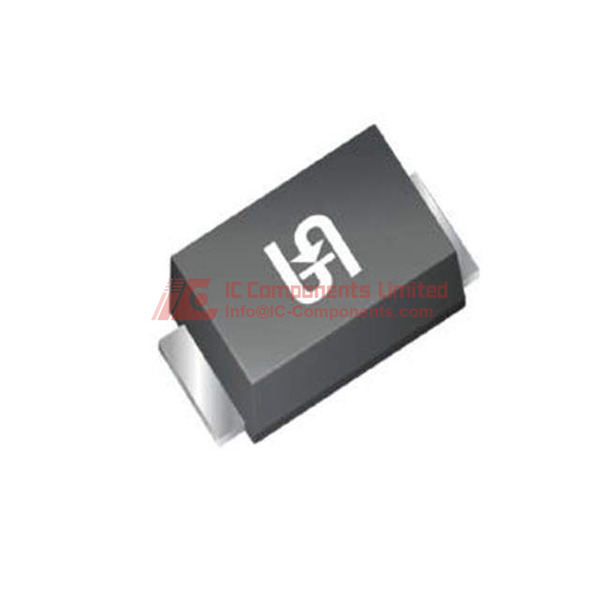

The TSC ES1JL R3G is a general purpose diode designed for various applications requiring reliable rectification. It features a maximum reverse voltage of 600V and can handle an average rectified current of 1A. The diode exhibits a fast recovery time of 35ns, making it suitable for applications where switching speed is important.
This component is designed for surface mounting and comes in a compact Sub SMA package (DO-219AB). The operating temperature range is from -55°C to 150°C. Its typical forward voltage drop is 1.7V at 1A, and it has a low reverse leakage current of 5µA at 600V.
The ES1JL R3G is manufactured by TSC (Taiwan Semiconductor). It is suitable for use in power supplies, converters, and other electronic circuits where efficient rectification is needed. The surface mount design allows for easy integration into automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage (Vr) for the ES1JL R3G diode is 600V.
The ES1JL R3G diode has an average rectified current (Io) rating of 1A.
The typical forward voltage (Vf) for the ES1JL R3G diode at 1A is 1.7V.
The ES1JL R3G diode can operate in a temperature range of -55°C to 150°C.
The ES1JL R3G diode is supplied in a Sub SMA package, specifically DO-219AB.
