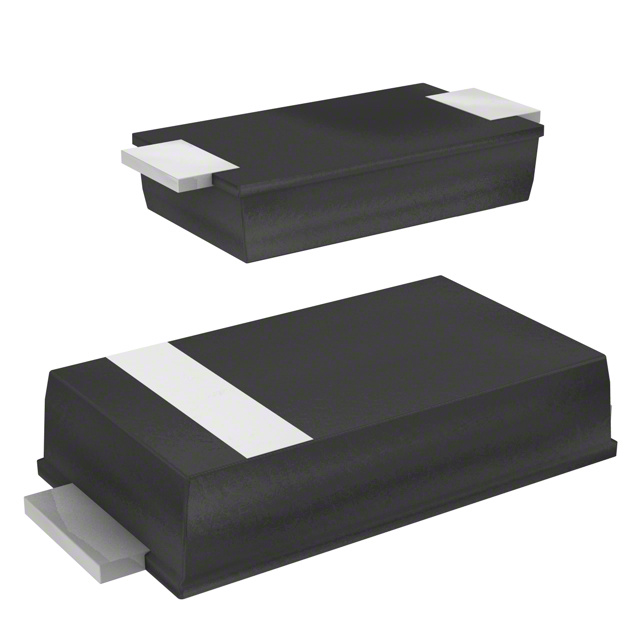

The ES1DAF is a 200V, 1A surface mount ultrafast rectifier diode from On Semiconductor (onsemi). It is designed for high-speed switching applications requiring low reverse recovery time, with a maximum trr of 34 ns. The device features a glass passivated junction for enhanced reliability and is housed in an ultra-thin DO-214AD (SMAF) package with a maximum height of 1.0 mm.
Key electrical specifications include a peak repetitive reverse voltage (VRRM) of 200V, a DC blocking voltage of 200V, and an average forward current (IF(AV)) of 1A. The maximum forward voltage at 1A is 950 mV. The device can handle a peak forward surge current (IFSM) of 30A for an 8.3 ms single half sine-wave. Typical junction capacitance is 15 pF at 4V and 1MHz.
The ES1DAF is suitable for a variety of power supply and rectification circuits. It is surface mountable and is supplied in tape and reel packaging with a standard quantity of 10,000 pieces. The device is RoHS3 compliant, Pb-Free, Halogen Free, and has an MSL rating of 1 (unlimited). The operating junction temperature range is -55°C to +150°C.
The maximum reverse recovery time (trr) is 34 ns.
The ES1DAF is housed in a DO-214AD (SMAF) surface mount package.
The average forward current (IF(AV)) is 1 A.
The maximum forward voltage at 1A is 950 mV.
The peak repetitive reverse voltage (VRRM) is 200 V.
Yes, the ES1DAF is RoHS3 compliant.
The operating junction temperature range is -55°C to +150°C.
