| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
857 pcs
|
857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Voltage |

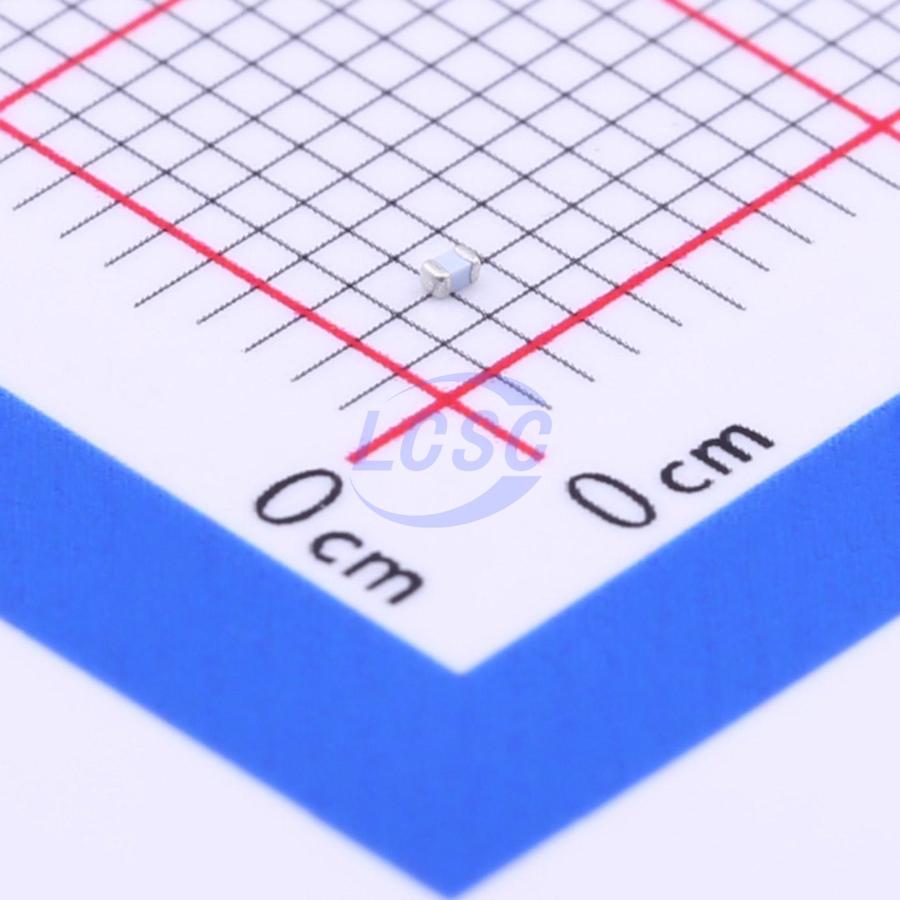

The AEM Inc ES0402V014CT is a GcDiodeTM ESD Suppressor designed to provide excellent protection against electrostatic discharge (ESD) damage. With an ultra-low capacitance of 0.25 pF typical, it is ideal for high-speed data lines.
Key electrical characteristics include a rated voltage of 14 VDC, a clamping voltage of 300 V typical (measured per IEC61000-4-2, Level 4, 8 kV), and a trigger voltage of 30 V typical. The response time is less than 1 ns, ensuring rapid protection.
This device features a bi-directional flip-chip design with a glass ceramic monolithic structure and special Ag/Pd composite ESD materials. The silver termination with nickel and lead-free solder plating offers excellent solderability and leach resistance. It is also highly durable, capable of withstanding 1000 strikes typical.
The ES0402V014CT is supplied in a compact 0402 (1005) surface mount package and is available on tape and reel. Its RoHS compliant and lead-free construction makes it suitable for modern electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55℃ to +125℃.
The response time is less than 1 ns.
The capacitance is 0.25 pF typical and 0.5 pF maximum.
The rated voltage is 14 VDC maximum.
The clamping voltage is 300 V typical when measured per IEC61000-4-2, Level 4, 8 kV.
It has an ESD capability of Level 4 - 8 kV for direct discharge and Level 4 - 15 kV for air discharge per IEC61000-4-2.
The ES0402V014CT is supplied in an 0402 (1005) surface mount package, available on tape and reel.
