| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance (Typical @ 1 kHz) | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Energy (Maximum) | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Package / Case | |
| Surge Current (Maximum) | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Min/Typ/Max) | |
| Varistor Voltage (Typ) |

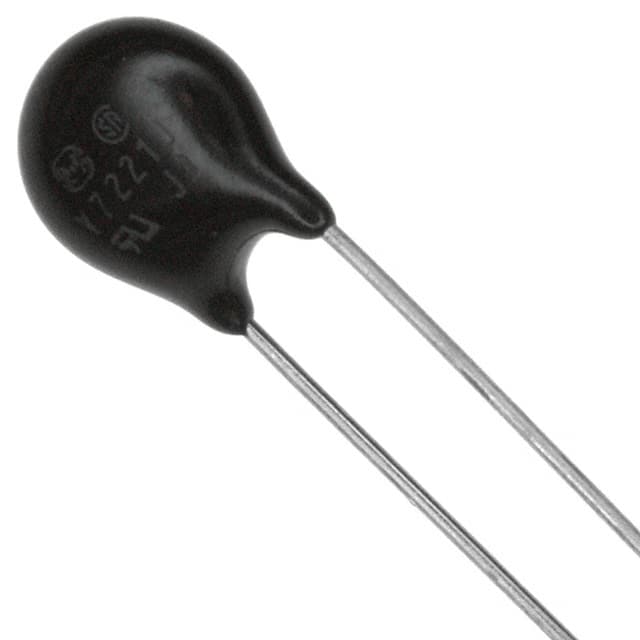

The Panasonic ERZ-V07D391 is a metal oxide varistor (MOV) designed for overvoltage protection in electronic circuits. It features a varistor voltage of 390V (typical), with a minimum of 351V and maximum of 429V.
Key electrical ratings include a maximum AC voltage of 250V and maximum DC voltage of 320V. The device can handle surge currents up to 1.75kA and absorb energy up to 35J. Typical capacitance is 130pF at 1kHz.
The varistor is housed in an 8.5mm disc package with through-hole mounting for easy integration into printed circuit boards. It operates over a temperature range of -40°C to +85°C.
The typical varistor voltage is 390V, with a minimum of 351V and maximum of 429V.
The maximum surge current is 1.75kA.
The operating temperature range is -40°C to +85°C.
The package is Disc 8.5mm with through-hole mounting.
Maximum AC voltage is 250V and maximum DC voltage is 320V.
