| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

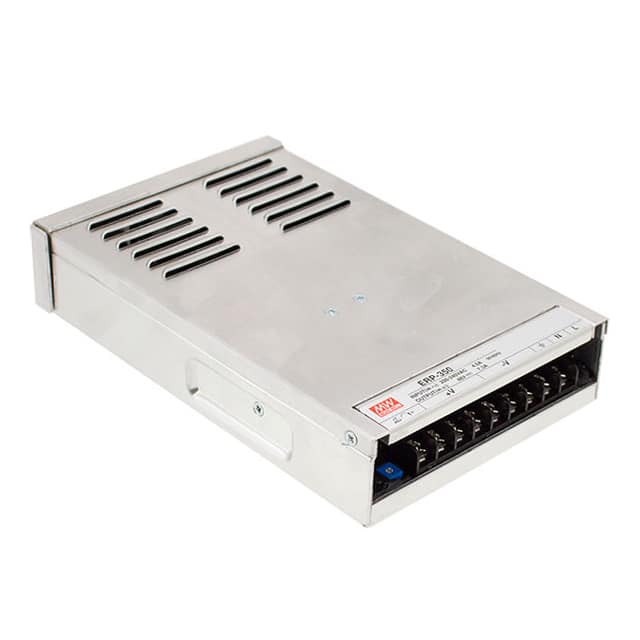

The Mean Well USA ERP-350-24 is a 350W single-output enclosed AC/DC power supply designed for industrial and commercial applications. It operates with an input voltage range of 180-264VAC and provides a stable 24V output.
Key electrical specifications include a rated power of 350W and a rated current of 14.6A. The unit offers an adjustable output voltage and features line regulation of ±1.0% and load regulation of ±0.5%. Efficiency is rated at 89% typical.
This power supply is built with protections against short circuit, overload, over voltage, and over temperature. It is cooled by free air convection and includes an LED indicator for power status. The dimensions are 220.4 x 130 x 48mm, and it is chassis mountable.
Applications include ITE (Commercial) use. The ERP-350 series is designed for reliability and low cost, with a 3-year warranty.
180-264 VAC or 254-370 VDC.
24V at 14.6A, 350W.
-30°C to 60°C with derating.
UL60950-1 and GB4943.1-2011.
89% typical.
Overload protection at 110-140% and hiccup mode overvoltage protection.
Chassis mount.
