| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

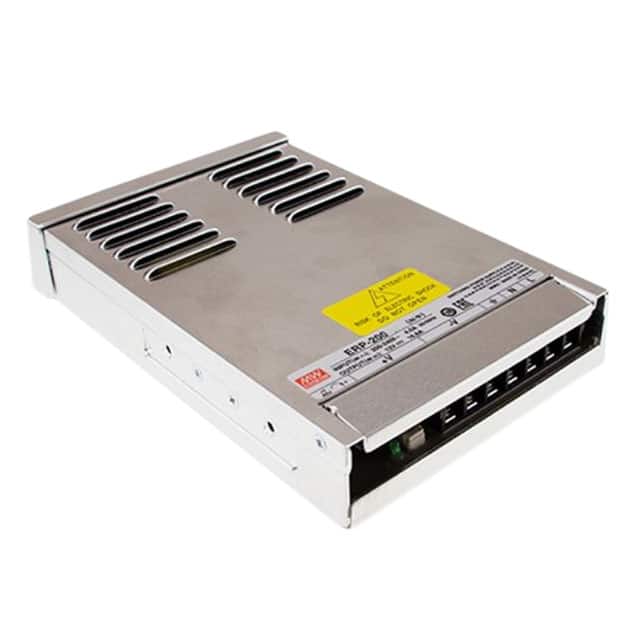

The Mean Well USA ERP-200-12 is an enclosed AC DC converter designed for ITE (Commercial) applications. This unit delivers 202W of power with an output voltage of 12V and a current rating of 16.8A.
Key electrical specifications include an efficiency of 87% and an isolation voltage of 3 kV. The converter features an adjustable output and is designed for chassis mounting.
With dimensions of 179.6mm x 120.0mm x 32.0mm, it offers a compact solution for power conversion needs. The operating temperature range is -30°C to 60°C with derating. Approval agencies include CE, CQC, and EAC, indicating compliance with relevant standards.
The Mean Well USA ERP-200-12 provides 202W of power.
The ERP-200-12 has a 12V output voltage.
The ERP-200-12 supports chassis mounting.
The operating temperature range is -30°C to 60°C with derating.
The dimensions are 179.6mm x 120.0mm x 32.0mm.
The ERP-200-12 is approved by CE, CQC, and EAC.
