| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination |

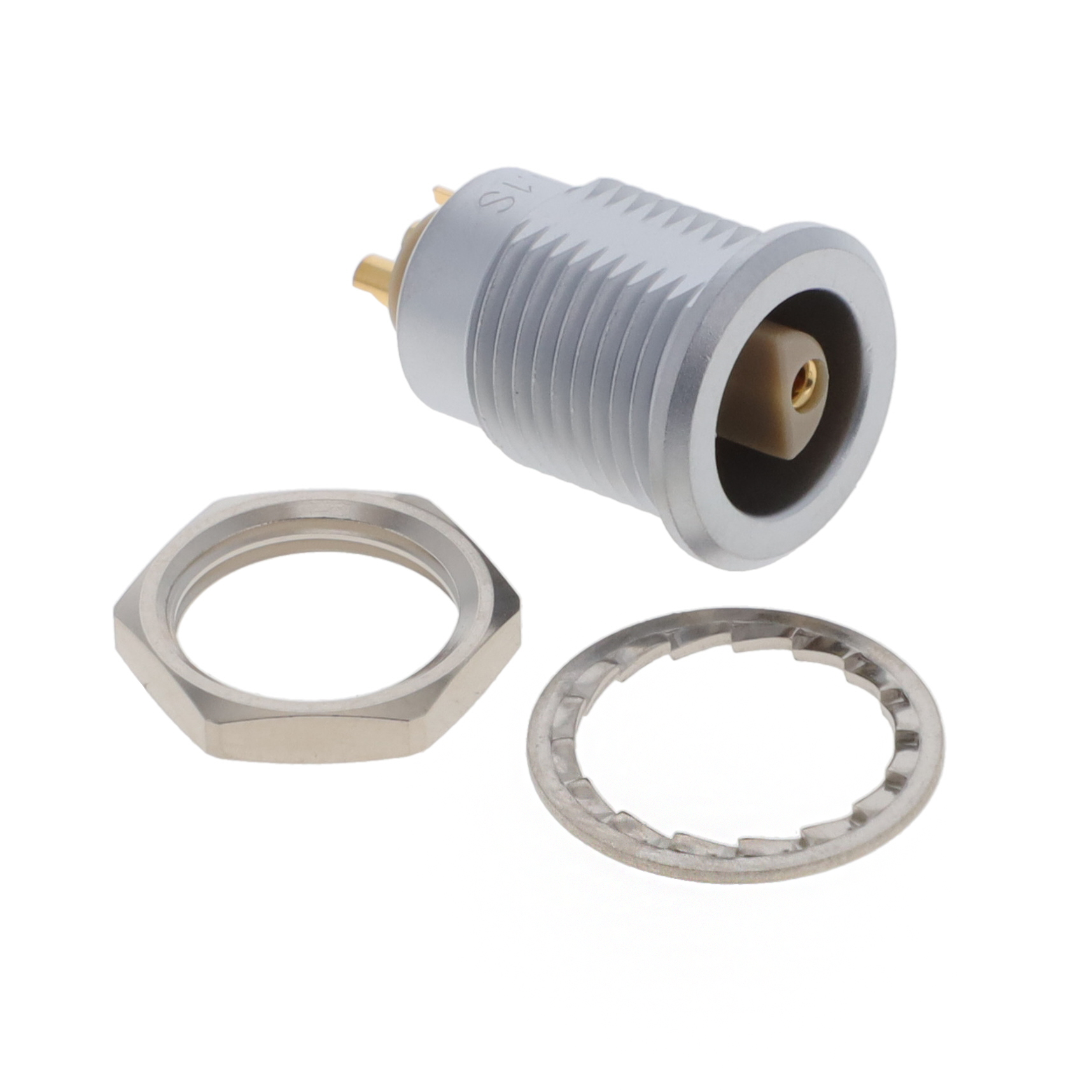

The ERN.1S.302.CLL is a 2-position circular connector receptacle from LEMO's 1S series. It features a metal shell with chrome finish and gold-plated contacts for reliable signal integrity. The connector uses a push-pull fastening system and is keyed for proper orientation. It is designed for panel mounting with a bulkhead rear side nut and uses solder cup termination. The receptacle is shielded and includes a ground feature. It is rated for 15 A current and operates over a temperature range of -55°C to 250°C. The ingress protection rating is IP50 (dust protected). The insulator material has a UL94 V-0 flammability rating. This connector is suitable for applications requiring a compact, rugged circular interconnect.
Receptacle with female sockets and male pins.
2 positions.
15 A.
Panel mount with bulkhead rear side nut.
-55°C to 250°C.
IP50 (dust protected).
Brass shell with chrome finish.
