| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bucket Diameter | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Diameter | |
| Contact Resistance | |
| Contact Termination | |
| Failure Rate | |
| Fastening Type | |
| Housing Color | |
| Housing Material | |
| Impedance | |
| Ingress Protection | |
| Insulator Material | |
| Keying | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature Range | |
| Rated Current | |
| Retention Force | |
| Salt Spray Corrosion | |
| Shell Style | |
| Shield Termination | |
| Termination Style | |
| VSWR | |
| Weight | |
| test_voltage (Nominal @ AC) | |
| test_voltage (Nominal @ DC) |

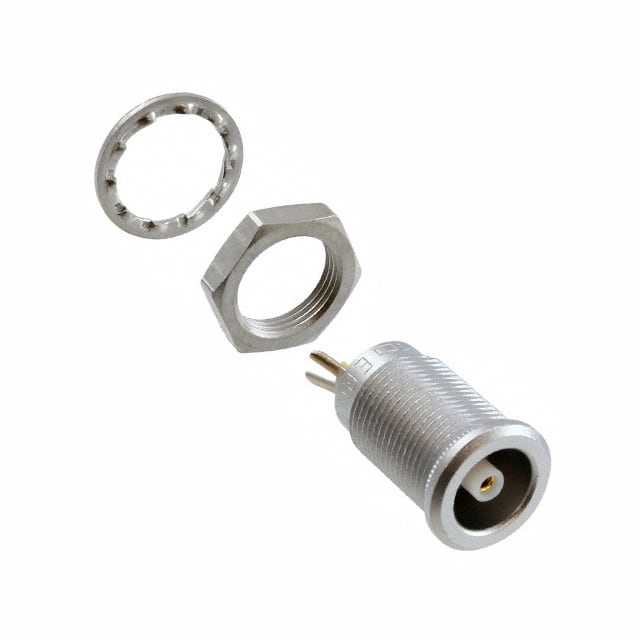

The LEMO ERN.00.250.NTL is a coaxial RF receptacle from the NIM-CAMAC series, designed for 50 Ohm impedance. It features a push-pull locking mechanism and a fixed panel front mounting with a rear side nut bulkhead. The connector includes one coaxial contact with a bronze center contact and a brass nickel-plated housing. Electrical specifications include a maximum contact resistance of 6.1 mOhm, rated current of 4 A, and test voltages of 2100 V AC and 3000 V DC. The VSWR is 1.09 + 0.11*f/GHz. Mechanical endurance is rated for 5000 mating cycles with a minimum retention force of 100 N. The insulator is PTFE, and the housing color is grey (per datasheet). Environmental protection is IP50, and the operating temperature range is -55°C to +260°C. Salt spray corrosion resistance exceeds 144 hours. The connector is RoHS3 and REACH compliant.
One coaxial contact.
4 A.
Test voltage of 2100 V AC and 3000 V DC.
Panel mount with bulkhead rear side nut.
50 Ohm.
5000 mating cycles.
-55°C to +260°C.
