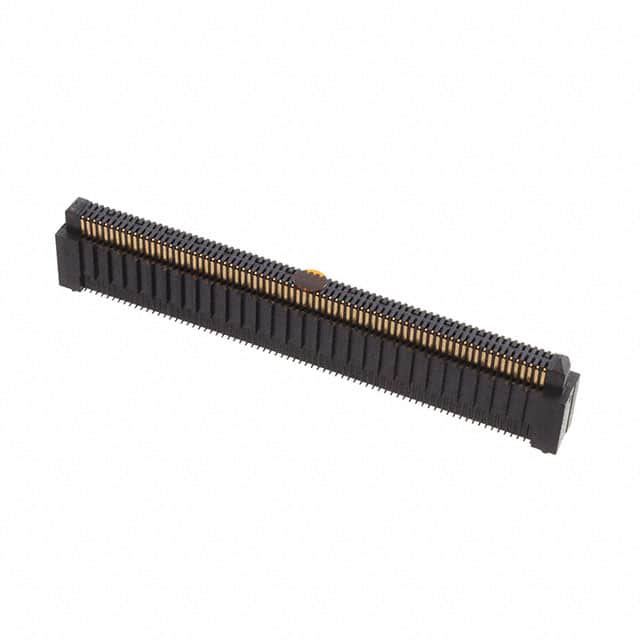

The ERM8-075-09.0-S-DV-K-TR is a high-density board-to-board connector from Samtec's ERM8 series. It features 150 positions arranged in 2 rows with a fine 0.80mm pitch, making it suitable for compact electronic designs where space is at a premium.
The contacts are gold plated with a thickness of 30µin (0.76µm), ensuring reliable signal integrity and corrosion resistance. The connector has a height above board of 0.508 inches (12.91mm) and is designed to support mated stacking heights of 14mm, 16mm, and 19mm, providing flexibility in mezzanine stack-up configurations.
Packaged in tape and reel for automated assembly, the connector includes board guide and pick-and-place features to facilitate efficient surface mount manufacturing. It is RoHS3 and REACH compliant, meeting current environmental standards.
The connector has 150 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
Surface mount (SMD).
Gold with a thickness of 30µin (0.76µm).
Mated stacking heights of 14mm, 16mm, and 19mm.
Board guide and pick-and-place features.
0.508 inches (12.91mm).
