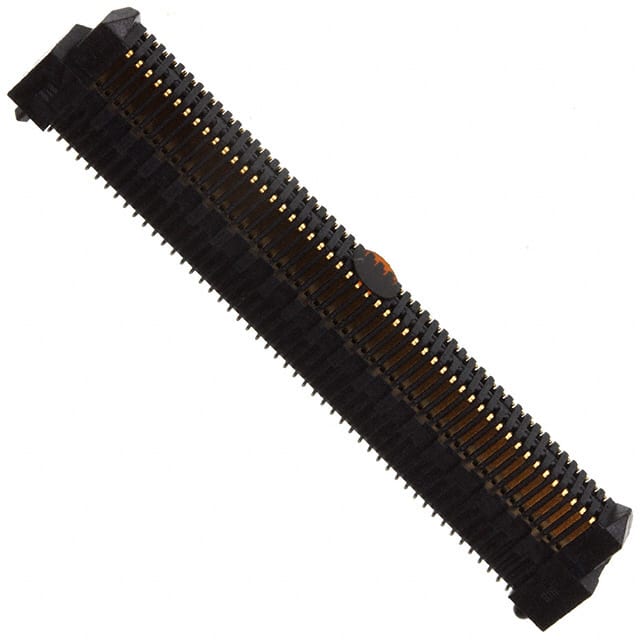

The Samtec ERM8-050-05.0-S-DV-K-TR is a high-density mezzanine connector from the Edge Rate series. It features 100 positions arranged in 2 rows with a 0.80mm pitch, making it suitable for board-to-board stacking applications. The connector uses a surface mount termination and is supplied in tape and reel packaging for automated assembly.
Key electrical specifications include a current rating of 1.4A per contact and a voltage rating of 225 VAC / 318 VDC. The operating temperature range spans -55°C to +125°C. The connector is lead-free solderable and RoHS3 compliant.
Mechanically, the connector offers a mated stacking height of 10mm, 12mm, or 15mm. It features a rugged 360° shielding design for EMI reduction and an Edge Rate contact system that provides up to 1.5mm of contact wipe for reliable connections. The insulator is made of black LCP, and the contacts are gold plated over a nickel underplate.
It has 100 positions arranged in 2 rows.
The pitch is 0.80mm.
The current rating is 1.4A per contact.
The voltage rating is 225 VAC / 318 VDC.
It uses surface mount technology.
