| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

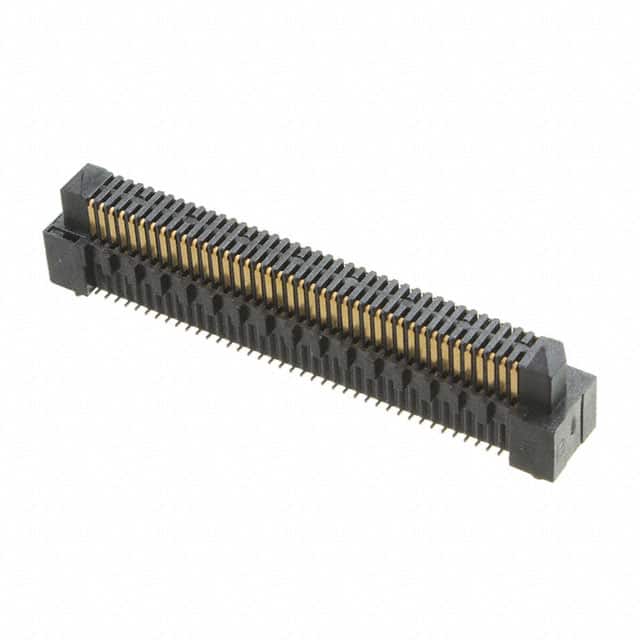

The ERM8-040-05.0-S-DV-TR is a 80-position header connector from Samtec, featuring center strip contacts arranged in 2 rows. It offers a 0.80mm (0.031") pitch, enabling compact board-to-board connections in space-constrained designs. The connector is surface mount (SMD) and has a height above board of 0.351" (8.91mm).\n\nContact surfaces are finished with 30.0µin (0.76µm) gold, ensuring reliable signal integrity and corrosion resistance. The part includes a board guide feature for accurate alignment during assembly. Mated stacking heights supported are 10mm, 12mm, and 15mm, providing flexibility in mezzanine stacking configurations.\n\nThis connector is suitable for use in high-density mezzanine and board-to-board interconnects. The surface mount design facilitates automated pick-and-place assembly. Compliance with RoHS3 and REACH is indicated, and the MSL rating is 1 (unlimited floor life).
80 positions
0.80mm (0.031")
Surface Mount
30.0µin (0.76µm) Gold
0.351" (8.91mm)
10mm, 12mm, 15mm
Yes, board guide
