| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Wipe | |
| Current Rating (Maximum @ Maximum) | |
| Current Rating (Maximum per Contact) | |
| Features | |
| Height Above Board | |
| Insulator Material | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Plating Option | |
| Standard Package Quantity | |
| Terminal Material | |
| Voltage Rating |

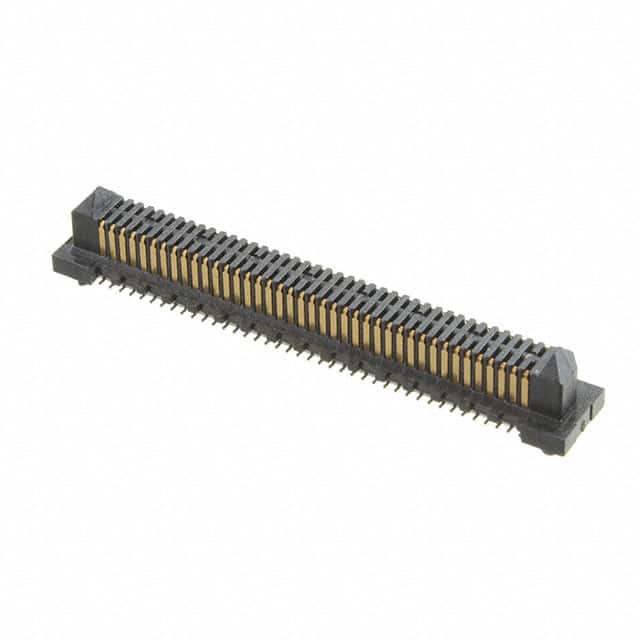

The Samtec ERM8-040-02.0-S-DV-K-TR is a 80 position, 2 row, 0.80mm pitch surface mount header with center strip contacts. It features gold contact finish with 30.0µin thickness and a height above board of 5.97mm. The connector supports mated stacking heights of 7mm, 9mm, and 12mm.
This header is part of the Edge Rate series designed for high-speed applications. It includes a board guide, pick and place pad, and polyimide film pick & place pad. The insulator is black LCP and the terminal material is phosphor bronze or beryllium copper.
Electrical ratings include a maximum current of 2.2A (or 1.4A per contact) and voltage rating of 225 VAC / 318 VDC. Operating temperature range is -55°C to +125°C. The connector is supplied in tape and reel packaging with a standard package quantity of 350 pieces.
The pitch is 0.80mm.
It has 80 positions arranged in 2 rows.
The maximum current rating is 2.2A, with 1.4A per contact.
The voltage rating is 225 VAC / 318 VDC maximum.
Surface mount.
-55°C to +125°C.
Tape & Reel with a standard package quantity of 350 pieces.
