| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 2010 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Wipe | |
| Current Rating | |
| Current Rating (Maximum) | |
| Data Rate | |
| Features | |
| Height Above Board | |
| Insulator Material | |
| Lead-Free Solderable | |
| Mated Stacking Heights | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Shielding | |
| Standard Package Quantity | |
| Terminal Material | |
| Voltage Rating |

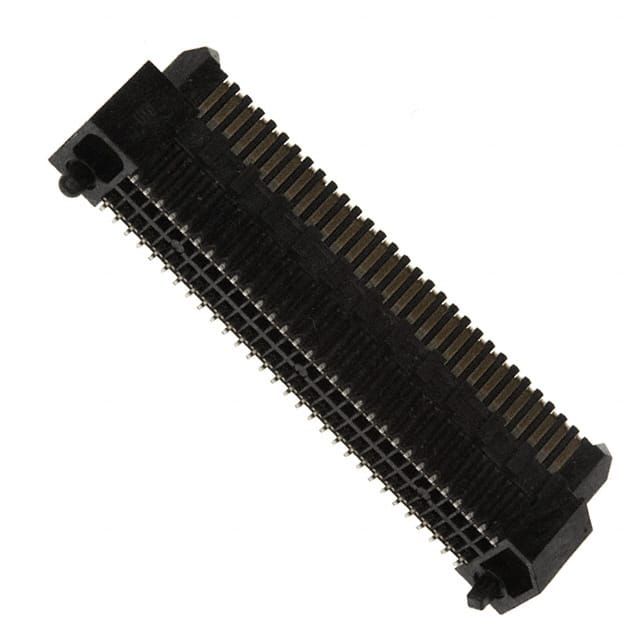

The ERM8-030-05.0-S-DV is a 60-position, 2-row, 0.80mm pitch surface mount header from Samtec's Edge Rate series. It features gold-plated contacts with 30µin thickness and a black LCP insulator. The connector is designed for high-speed mezzanine board-to-board applications.
Electrical specifications include a current rating of 1.4A per datasheet (2.2A max per manufacturer page), voltage rating of 225 VAC / 318 VDC, and support for data rates up to 56 Gbps PAM4. The operating temperature range is -55°C to +125°C.
Mechanical features include a board guide, 1.5mm contact wipe, and mated stacking heights of 10mm, 12mm, and 15mm. The connector is rated for 1000 mating cycles. Packaging is tray with 56 parts per package.
The ERM8 series is lead-free solderable and RoHS3 compliant. It is suitable for high-reliability applications requiring rugged, high-speed interconnects.
60 positions in 2 rows.
0.80mm.
1.4A per datasheet, 2.2A max per manufacturer page.
225 VAC / 318 VDC.
Surface mount.
56 Gbps PAM4.
1000 cycles.
