| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

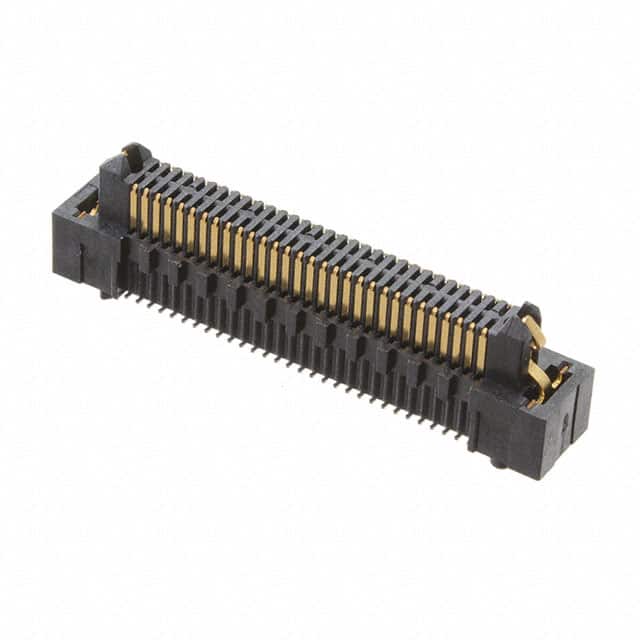

The Samtec ERM8-030-05.0-L-DV-L-TR is a 60 position, 2 row header connector with center strip contacts, designed for mezzanine (board-to-board) applications. It features a 0.80mm pitch and surface mount termination. The connector has a gold contact finish with 10.0µin (0.25µm) thickness. It includes board guide and latch features for secure mating. The height above board is 8.91mm, and it supports mated stacking heights of 10mm, 12mm, and 15mm. This component is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is suitable for high-density interconnects in compact electronic assemblies.
0.80mm
60 positions
Surface Mount
Gold, 10.0µin (0.25µm)
10mm, 12mm, and 15mm
